GeoAI: AI Agents for GIS — A Complete Technical Guide

A comprehensive technical guide to AI agents for Geographic Information Systems (GIS). Covers three-tier agent architecture, ReAct and Multi-Agent design patterns, Model Context Protocol (MCP) tool integration, and full code implementations with LangGraph and CrewAI. Includes 7 professional architecture diagrams, GIS tool function schemas, and real-world use cases for disaster response, urban planning, environmental monitoring, and infrastructure inspection. Production-ready Python code for building autonomous geospatial AI agents.

1. Executive Summary
2. What is GeoAI?
3. Geospatial AI Agents: Core Concepts
4. System Architecture & Design Patterns
5. Three-Tier Geospatial Agent Architecture
6. Types of Geospatial AI Agents
7. AI Agent Frameworks for GeoAI
8. Tool Systems: MCP, RAG & Function Calling
9. Agent Design Patterns
10. Code Implementation Examples
11. Real-World Use Cases
12. GIS Platforms with AI Agent Integration
13. Building Your First GeoAI Agent
14. Production Considerations
15. Future Outlook
16. Resources & References
17. Glossary

1. Executive Summary

GeoAI (Geospatial Artificial Intelligence) represents the convergence of geospatial data, geographic information systems (GIS), and artificial intelligence techniques including machine learning, deep learning, computer vision, and large language models (LLMs). The emergence of AI agents capable of planning, reasoning, and executing geospatial workflows autonomously marks a paradigm shift in how spatial analysis is conducted.

This guide provides a comprehensive technical reference for understanding, architecting, and implementing AI agents for GIS workflows. It covers architecture patterns, framework comparisons, code examples, and production-ready guidance based on the current state of the industry in 2026.

Key Takeaways

Capability	Impact
Autonomous Spatial Analysis	AI agents can plan and execute multi-step geoprocessing workflows with minimal human intervention
Natural Language to GIS	Users can interact with GIS systems through conversational interfaces without writing queries
Multi-Agent Orchestration	Teams of specialized agents collaborate on complex geospatial tasks
Democratized Access	Non-GIS experts can access powerful spatial analysis capabilities
Workflow Automation	Repetitive geoprocessing tasks are automated, reducing analysis time by 70-90%

2. What is GeoAI?

Definition

GeoAI is the integration of geospatial data and artificial intelligence techniques within GIS platforms to automate, enhance, and scale spatial analysis. It encompasses a wide range of capabilities, from object detection in imagery and 3D scenes to natural language-powered assistants and predictive modeling.

Evolution of AI in GIS

1980s ──► Command-line GIS Systems
   │
1990s ──► Graphical User Interfaces (GUI) + Desktop GIS
   │
2000s ──► Web GIS + Cloud Computing + Mobile Platforms
   │
2010s ──► Machine Learning for spatial analysis & image classification
   │
Late 2010s ──► Deep Learning embedded in core GIS workflows
   │
2020s ──► Large Language Models (LLMs) + Computer Vision
   │
2024-2026 ──► AI Agents: Autonomous, multi-step geospatial workflow orchestration

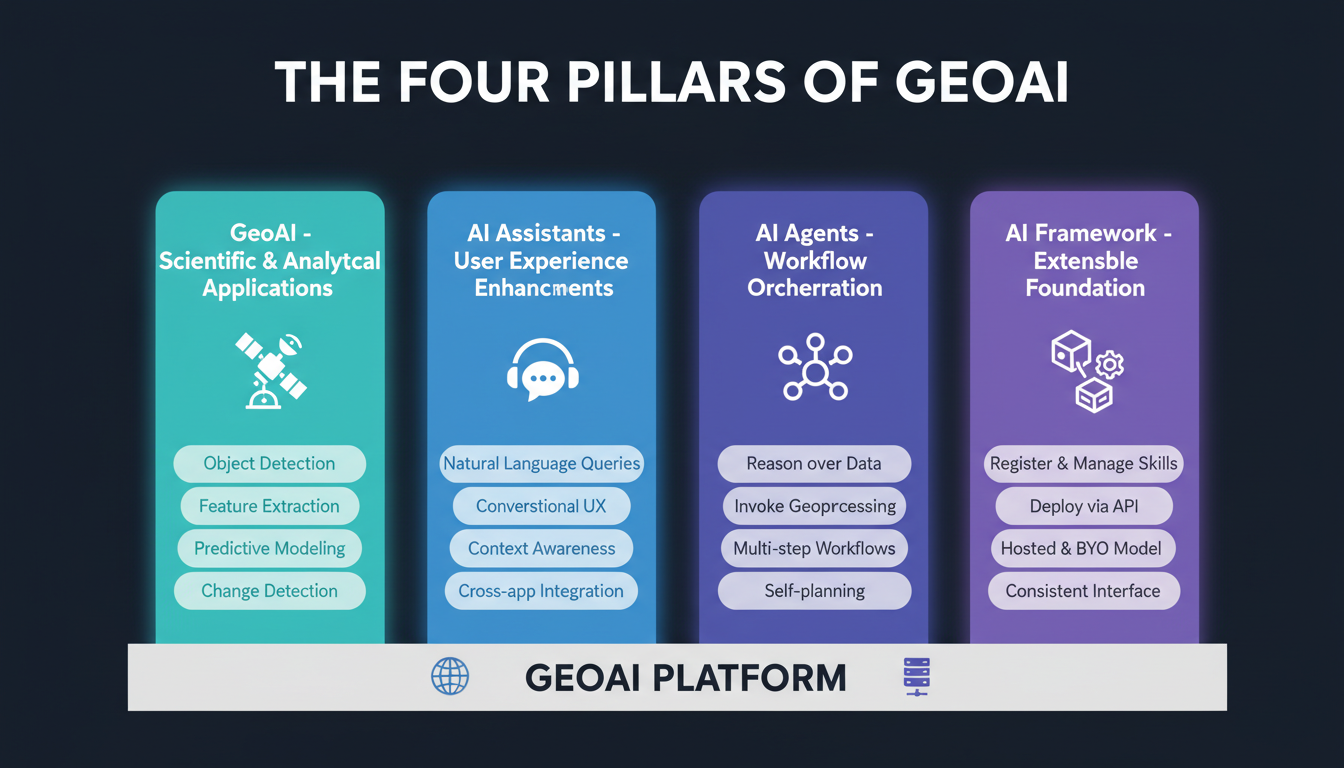

The Four Pillars of GeoAI

3. Geospatial AI Agents: Core Concepts

What is a Geospatial AI Agent?

A geospatial AI agent is an autonomous or semi-autonomous software component that:

Perceives geospatial data (vector, raster, 3D, temporal)
Reasons about spatial relationships and domain context
Plans multi-step analysis workflows
Executes GIS tools, APIs, and geoprocessing services
Responds with actionable insights, maps, or derived datasets

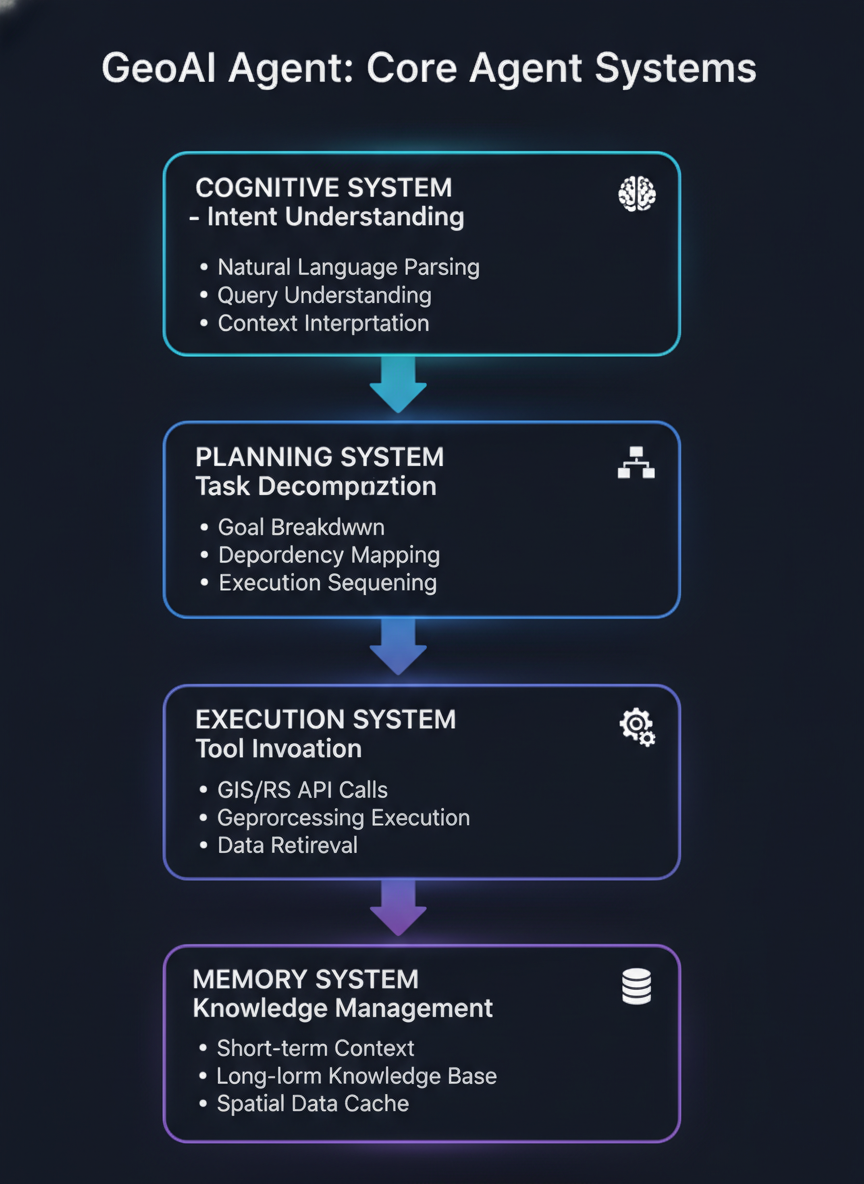

Core Agent Systems

Every geospatial AI agent consists of four interconnected systems:

Agent vs. Assistant vs. Traditional Script

Dimension	Traditional Script	AI Assistant	AI Agent
Autonomy	None (deterministic)	Low (guided)	High (self-directed)
Reasoning	None	LLM-powered	LLM + spatial reasoning
Tool Use	Hardcoded	Predefined skills	Dynamic tool selection
Adaptability	None	Limited context	Full replanning
Human Input	Batch execution	Interactive	Human-in-the-loop optional
Error Handling	Fail/Retry	Manual recovery	Self-correction

4. System Architecture & Design Patterns

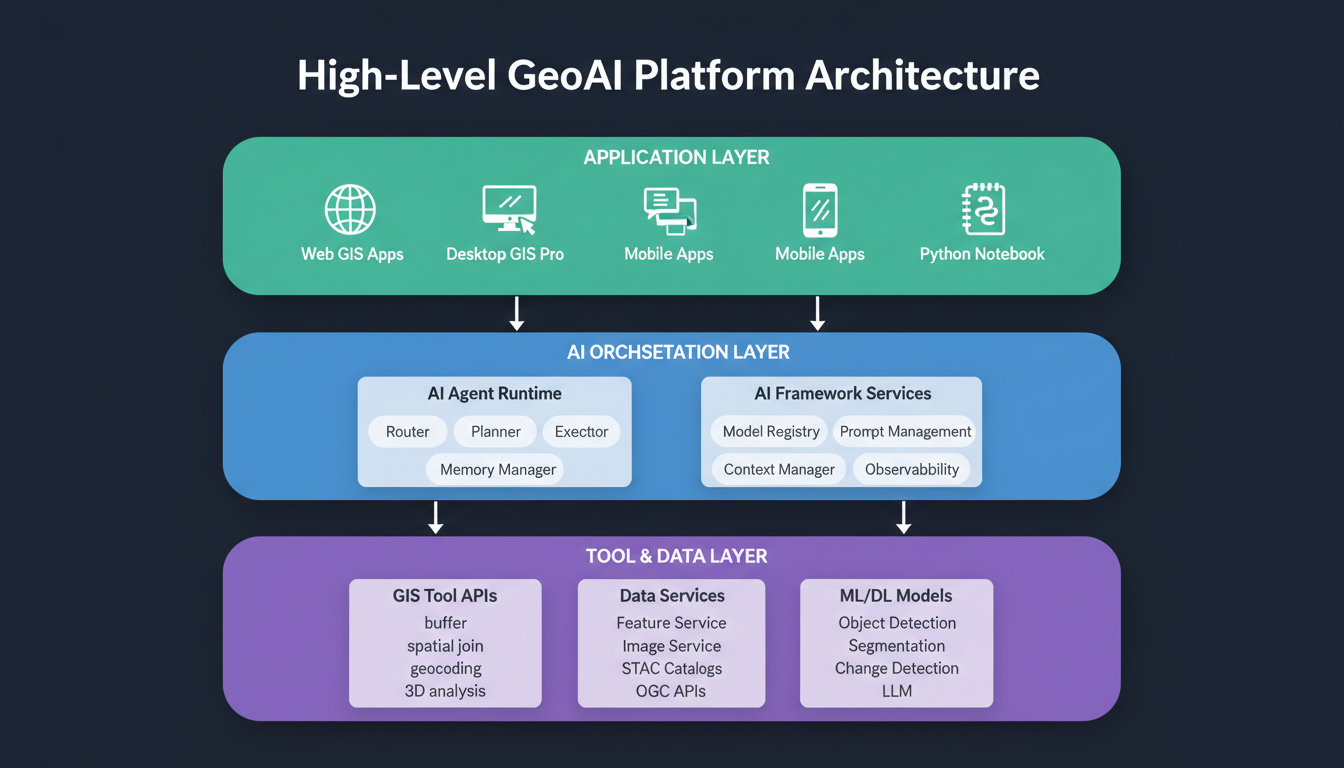

High-Level GeoAI Platform Architecture

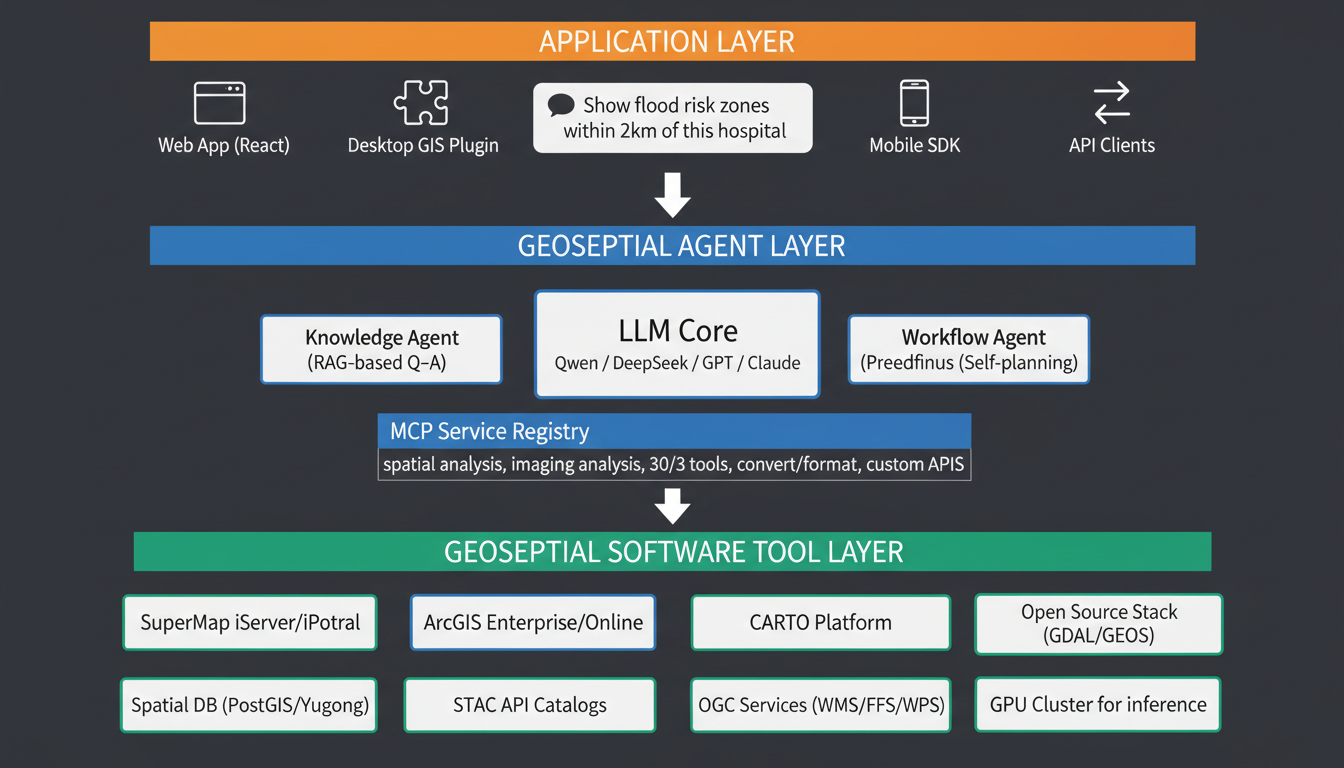

5. Three-Tier Geospatial Agent Architecture

A complete geospatial AI agent application follows a three-tier architecture:

6. Types of Geospatial AI Agents

6.1 Knowledge Agents (Level 1)

Purpose: Information retrieval and Q&A with geospatial domain knowledge.

Architecture:

User Query → Intent Classification → RAG Retrieval → LLM Synthesis → Cited Response

Capabilities:

Document search with semantic understanding
Multi-turn dialogue for complex queries
Automatic escalation to human agents
Knowledge base construction toolkit

Example Use Case: Real estate registration intelligent Q&A system delivering professional-grade precision in single-turn and multi-turn dialogues.

Strengths: Broad applicability, mature, high accuracy for information retrieval. Limitations: No execution capabilities; cannot perform actual geoprocessing.

6.2 Workflow Agents (Level 2)

Purpose: Execute predefined geoprocessing workflows guided by natural language.

Architecture:

Stage	Action	Description
1	Parse Intent	LLM extracts intent and parameters from natural language
2	Load Data	Retrieve the specified dataset
3	Classify	Apply classification method (natural breaks, quantile, etc.)
4	Symbolize	Apply color scheme and styling
5	Render	Generate final map visualization

User Command → LLM Parser → Workflow Engine → [Step 1 → Step 2 → Step 3 → Step N] → Output

Capabilities:

Thematic map generation from commands
Data transformation pipelines
Format conversion workflows
Visualization and styling automation

Example Use Case: In SuperMap iDesktopX, users input commands like "Create a thematic map segmented by national population data" and the system displays results immediately. Further commands can generate labeled thematic maps or statistical charts.

Strengths: High success rate for complex tasks, production-ready, hybrid human-AI control. Limitations: Requires predefined workflows; less flexible than autonomous agents.

6.3 Autonomous Agents (Level 3)

Purpose: Self-directed task planning and execution with iterative optimization.

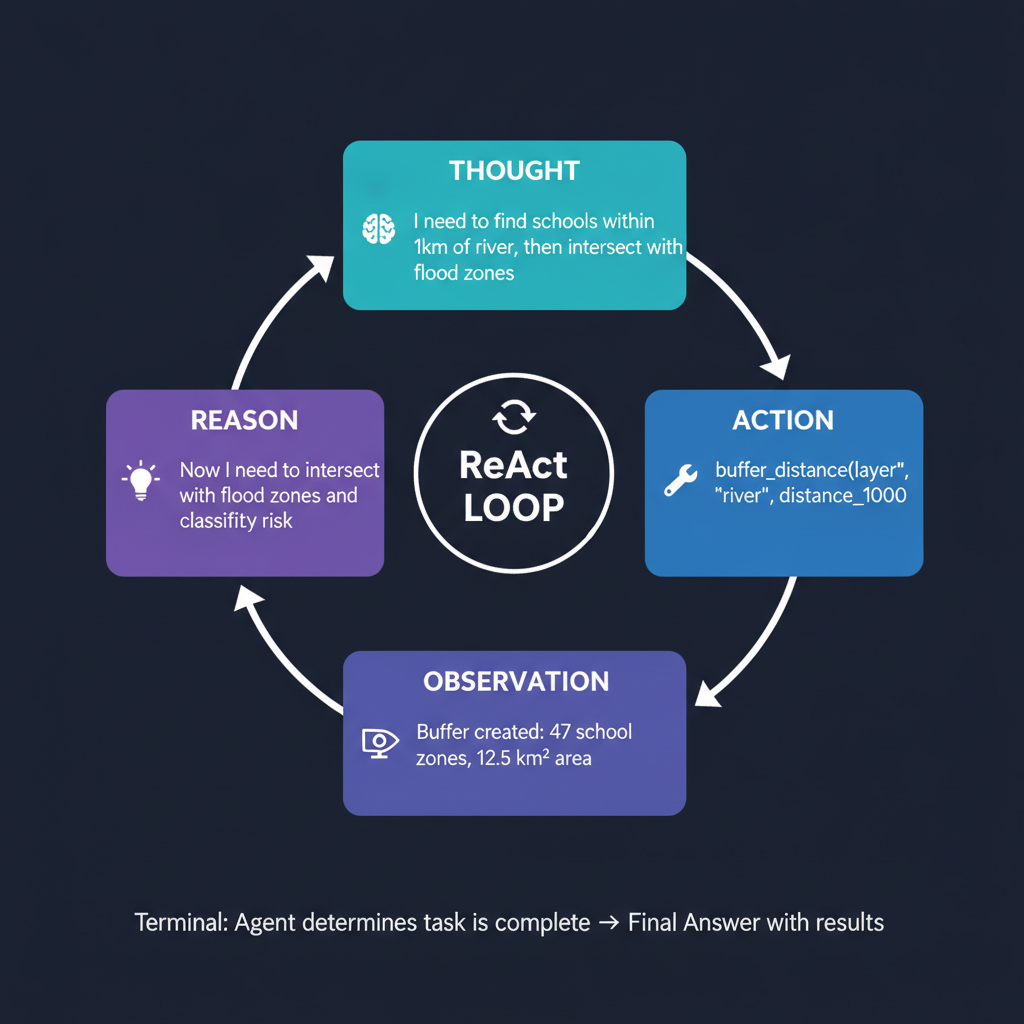

Architecture (ReAct Pattern):

User Query → Task Planning → [Execute → Observe → Reason] (loop) → Final Output

Operational Logic:

Task Planning: Decompose high-level goal into actionable steps
Step Execution: Execute the current step using available tools
Observation: Capture execution results
Re-Planning: Evaluate outcomes, optimize subsequent strategies
Iteration: Repeat until task completion

Capabilities:

Independent reasoning and planning
Dynamic tool chain discovery
Self-correction and replanning
Multi-source data synthesis

Example Use Case: Autonomous landslide risk assessment combining DEM analysis, rainfall data, soil properties, and land cover classification without predefined workflow.

Strengths: Highest autonomy, can handle novel tasks, adapts to changing conditions. Limitations: Lower task success rate (currently), higher token consumption, requires robust guardrails.

Agent Type Comparison Matrix

Dimension	Knowledge Agent	Workflow Agent	Autonomous Agent
Autonomy Level	Low	Medium	High
Task Success Rate	High (>90%)	High (>85%)	Medium (60-75%)
Production Readiness	Production	Production	Experimental/Preview
Use Case Fit	Q&A, Search	Automation, Mapping	Novel Analysis
Human Oversight	Minimal	Workflow design	Heavy guardrails
Token Cost	Low	Medium	High
LLM Requirements	Standard	Standard	Advanced reasoning

7. AI Agent Frameworks for GeoAI

7.1 Framework Comparison

Framework	Architecture	Best For	Multi-Agent	Learning Curve	Geo Integration
LangChain/LangGraph	Modular / Graph-based	Complex workflows, RAG, stateful apps	Yes (via LangGraph)	Steep	Excellent (600+ integrations)
CrewAI	Role-based / Crew+Flow	Rapid prototyping, team-based tasks	Native	Easy	Good (Python-based)
AutoGen	Conversation-driven	Multi-agent collaboration, code execution	Native	Moderate	Moderate
Strands Agents	Event-driven	Geospatial tool binding, QGIS integration	Yes	Moderate	Native (GeoAgent)
Custom (FastAPI)	API-based	Production deployments, fine-grained control	Custom	Flexible	Full control

7.2 LangChain / LangGraph for GeoAI

Strengths:

600+ integrations including major GIS libraries
Graph-based stateful workflows (LangGraph)
First-class persistence and checkpointing
LangSmith observability

Best For: Complex, long-running geospatial workflows requiring state management and precise control over data flow.

Architecture Pattern:

# LangGraph-based GeoAI Agent (Conceptual)
from langgraph.graph import StateGraph, START, END
from langchain_core.tools import tool

# State definition
class GeoAgentState(TypedDict):
    messages: Annotated[list, operator.add]
    spatial_data: dict
    analysis_results: dict
    active_tools: list[str]

# Tool definitions
@tool
def buffer_geometry(layer_name: str, distance: float) -> str:
    """Buffer a geometry layer by specified distance."""
    ...

@tool
def spatial_join(target_layer: str, join_layer: str) -> str:
    """Perform spatial join between two layers."""
    ...

@tool
def clip_raster(raster_path: str, bounds: tuple) -> str:
    """Clip raster to specified bounds."""
    ...

# Graph construction
workflow = StateGraph(GeoAgentState)
workflow.add_node("understand_query", understand_node)
workflow.add_node("plan_analysis", planning_node)
workflow.add_node("execute_gis", ToolNode(gis_tools))
workflow.add_node("evaluate_results", evaluation_node)

workflow.add_edge(START, "understand_query")
workflow.add_conditional_edges("understand_query", route_to_planning)
workflow.add_conditional_edges("plan_analysis", route_to_execution)
workflow.add_edge("execute_gis", "evaluate_results")
workflow.add_conditional_edges("evaluate_results", should_continue)

geo_agent = workflow.compile()

7.3 CrewAI for GeoAI

Strengths:

Fastest prototyping (working multi-agent in <100 lines)
Role-based abstraction maps well to GIS team structures
Sequential and Hierarchical execution patterns
YAML configuration for non-developers

Best For: Pipeline workflows where different agents own different phases (data acquisition → processing → analysis → visualization).

Architecture Pattern:

# CrewAI Geo Crew Configuration (YAML)
agents:
  data_acquisition_agent:
    role: "Geospatial Data Acquisition Specialist"
    goal: "Find and retrieve the most relevant spatial datasets for analysis"
    backstory: "You are an expert in geospatial data sources, STAC catalogs, and API endpoints. You know exactly where to find elevation data, satellite imagery, and vector datasets."
    tools:
      - stac_search
      - wfs_query
      - data_download

  spatial_analyst:
    role: "Senior Spatial Analyst"
    goal: "Perform rigorous geospatial analysis to extract meaningful insights"
    backstory: "You are a GIS professional with 15 years of experience in spatial analysis, geoprocessing, and cartography."
    tools:
      - buffer_tool
      - overlay_analysis
      - interpolation
      - cluster_analysis

  cartographer:
    role: "Professional Cartographer"
    goal: "Create beautiful, informative maps that communicate findings clearly"
    backstory: "You are an award-winning cartographer specializing in thematic mapping and data visualization."
    tools:
      - thematic_map
      - symbolization
      - layout_design

tasks:
  acquire_data:
    description: "Retrieve DEM, land cover, and infrastructure data for {study_area}"
    agent: data_acquisition_agent
    expected_output: "List of acquired datasets with metadata"

  perform_analysis:
    description: "Analyze flood risk using acquired datasets"
    agent: spatial_analyst
    context: [acquire_data]
    expected_output: "Risk assessment results with statistics"

  create_map:
    description: "Generate final risk map with legend and annotations"
    agent: cartographer
    context: [perform_analysis]
    expected_output: "Publication-ready map document"

7.4 AutoGen for GeoAI

Strengths:

Native multi-agent conversation
Mix-and-match LLM support (Claude for reasoning + GPT-4o for tools)
Built-in sandboxed code execution
Asynchronous event-driven architecture

Best For: Research automation, iterative analysis, and scenarios where agents need to collaborate dynamically.

7.5 Strands Agents / GeoAgent (Geospatial-Native)

GeoAgent is a shared AI agent layer specifically built for geospatial Python packages, live map widgets, and QGIS plugins.

Architecture:

┌─────────────────────────────────────────────────────────────┐
│                        GeoAgent                              │
│              (Shared Geospatial Agent Layer)                 │
├─────────────────────────────────────────────────────────────┤
│  Core Concepts:                                              │
│  · GeoAgent          - High-level facade around Strands Agent│
│  · GeoAgentConfig    - Provider, model, temperature settings │
│  · GeoAgentContext   - Runtime objects (map, QGIS iface)     │
│  · @geo_tool         - Decorator for geospatial functions    │
│  · GeoToolRegistry   - Tool metadata, safety flags           │
├─────────────────────────────────────────────────────────────┤
│  Factory Functions:                                          │
│  · for_leafmap()     - Bind to leafmap.Map                   │
│  · for_anymap()      - Bind to anymap.Map                    │
│  · for_qgis()        - Bind to QGIS iface/project            │
│  · for_stac()        - Bind to STAC catalog tools            │
│  · for_nasa_opera()  - Bind to NASA OPERA tools              │
│  · create_agent()    - Custom tool integration               │
├─────────────────────────────────────────────────────────────┤
│  Provider Support:                                           │
│  OpenAI · Anthropic · Google Gemini · Ollama · LiteLLM      │
│  OpenRouter · vLLM · Amazon Bedrock · OpenAI Codex OAuth    │
├─────────────────────────────────────────────────────────────┤
│  Package Integrations:                                       │
│  leafmap · anymap · geoai · geemap · STAC · NASA Earthdata  │
└─────────────────────────────────────────────────────────────┘

Quick Start Example:

import leafmap
from geoagent import for_leafmap

# Create map and bind agent
m = leafmap.Map()
agent = for_leafmap(m)

# Natural language geospatial interaction
resp = agent.chat("Add a marker for Knoxville and zoom to it.")
resp = agent.chat("Load the STAC catalog for Sentinel-2 and display imagery.")

# Display map
m

8. Tool Systems: MCP, RAG & Function Calling

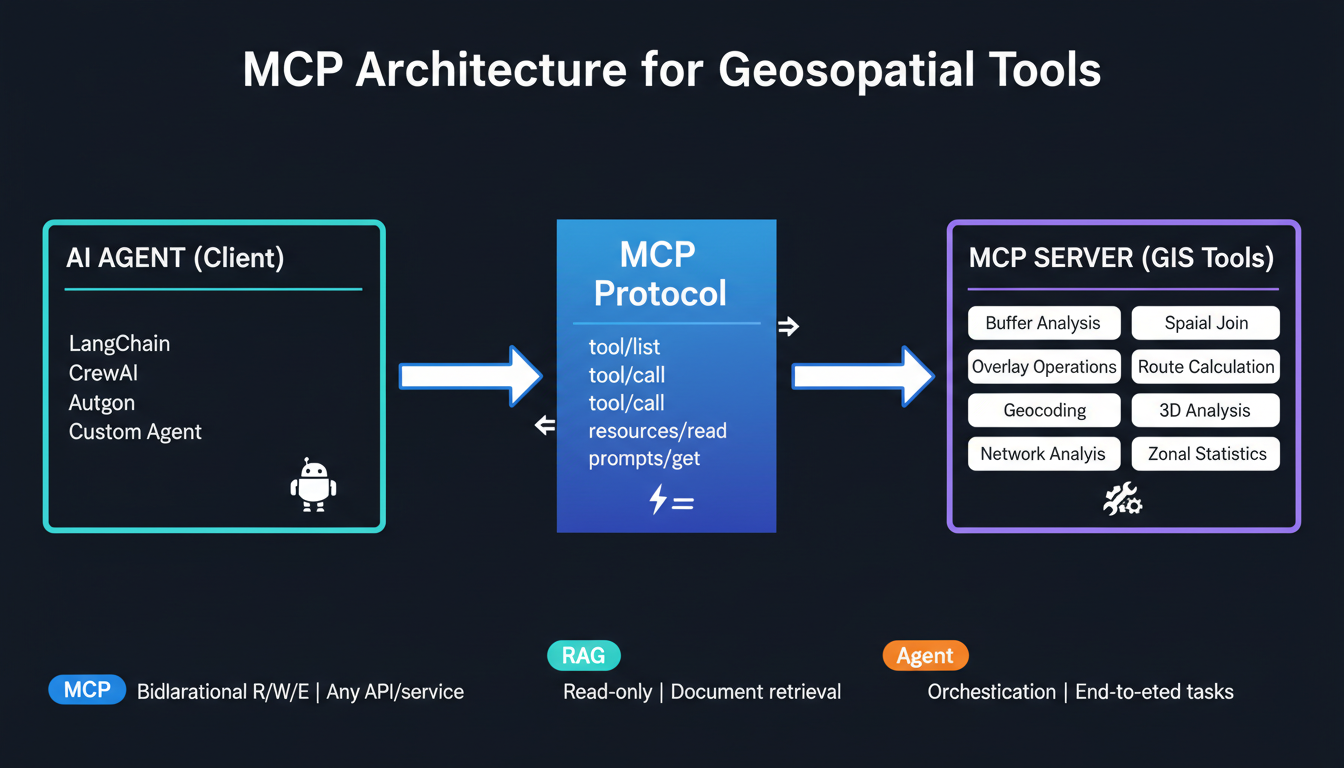

8.1 Model Context Protocol (MCP)

MCP is an open protocol that standardizes how AI agents connect to external tools and services. It provides bidirectional communication (read + write + execute).

MCP vs RAG vs Agents:

Dimension	MCP	RAG	AI Agent
Purpose	Connect LLM to tools	Retrieve knowledge	Orchestrate workflows
Direction	Bidirectional (R/W/E)	Read-only	Orchestration
Scope	Any API/tool/service	Document retrieval	End-to-end task
Analogy	The "how" (connection)	The "what" (knowledge)	The "who" (orchestrator)

8.2 RAG for Geospatial Knowledge

Retrieval-Augmented Generation grounds agent responses in domain-specific geospatial knowledge.

User Query → Query Embedding → Vector Search → Context Retrieval → LLM + Context → Response
                  │                    │
                  ▼                    ▼
           ┌──────────────┐    ┌──────────────────────┐
           │  Embedding   │    │  Geospatial KB       │
           │  Model       │    │  · Documentation     │
           │              │    │  · Standards         │
           └──────────────┘    │  · Best Practices    │
                               │  · Error Guides      │
                               │  · Domain Papers     │
                               └──────────────────────┘

8.3 GIS Tool Function Calling Schema

Example tool definitions that agents can invoke:

# GIS Tool Schema for LLM Function Calling
GIS_TOOLS = [
    {
        "name": "spatial_buffer",
        "description": "Create buffer zones around input features",
        "parameters": {
            "type": "object",
            "properties": {
                "input_layer": {"type": "string", "description": "Input feature layer name or path"},
                "distance": {"type": "number", "description": "Buffer distance in map units"},
                "unit": {"type": "string", "enum": ["meters", "kilometers", "feet", "miles"]},
                "dissolve": {"type": "boolean", "description": "Dissolve overlapping buffers"}
            },
            "required": ["input_layer", "distance"]
        }
    },
    {
        "name": "spatial_intersection",
        "description": "Compute geometric intersection of two layers",
        "parameters": {
            "type": "object",
            "properties": {
                "layer_a": {"type": "string"},
                "layer_b": {"type": "string"},
                "output_layer": {"type": "string"}
            },
            "required": ["layer_a", "layer_b"]
        }
    },
    {
        "name": "extract_by_location",
        "description": "Select features based on spatial relationship",
        "parameters": {
            "type": "object",
            "properties": {
                "target_layer": {"type": "string"},
                "source_layer": {"type": "string"},
                "relationship": {
                    "type": "string",
                    "enum": ["intersect", "within", "contains", "within_distance", "bounds"]
                },
                "distance": {"type": "number", "description": "Search distance for within_distance"}
            },
            "required": ["target_layer", "source_layer", "relationship"]
        }
    },
    {
        "name": "zonal_statistics",
        "description": "Calculate statistics for raster within zones",
        "parameters": {
            "type": "object",
            "properties": {
                "zone_layer": {"type": "string", "description": "Zone polygon layer"},
                "value_raster": {"type": "string", "description": "Input raster dataset"},
                "statistics": {
                    "type": "array",
                    "items": {"enum": ["mean", "max", "min", "sum", "std", "count", "majority"]},
                    "description": "Statistics to calculate"
                }
            },
            "required": ["zone_layer", "value_raster"]
        }
    },
    {
        "name": "geocode_addresses",
        "description": "Convert addresses to point features",
        "parameters": {
            "type": "object",
            "properties": {
                "addresses": {"type": "array", "items": {"type": "string"}},
                "country_code": {"type": "string", "description": "ISO country code for bias"},
                "output_fields": {"type": "array", "items": {"type": "string"}}
            },
            "required": ["addresses"]
        }
    },
    {
        "name": "generate_thematic_map",
        "description": "Create a thematic/choropleth map from a dataset",
        "parameters": {
            "type": "object",
            "properties": {
                "layer": {"type": "string"},
                "attribute": {"type": "string", "description": "Field to visualize"},
                "method": {"type": "string", "enum": ["natural_breaks", "equal_interval", "quantile", "manual"]},
                "classes": {"type": "integer", "description": "Number of classes (default: 5)"},
                "color_scheme": {"type": "string", "description": "Color brewer scheme name"},
                "output_format": {"type": "string", "enum": ["png", "svg", "pdf", "web"], "default": "web"}
            },
            "required": ["layer", "attribute"]
        }
    }
]

9. Agent Design Patterns

9.1 ReAct (Reason + Act) Pattern

The most common pattern for autonomous geospatial agents:

9.2 Routing Patterns

Pattern	Description	Use Case
Rule-based	Hardcoded rules trigger specific functions	Simple keyword detection
Semantic	LLM understands intent to route requests	Natural language queries
Hierarchical	Master agent delegates to sub-agents	Complex multi-domain analysis
LLM-based	LLM decides which tool/agent to call	Full autonomy

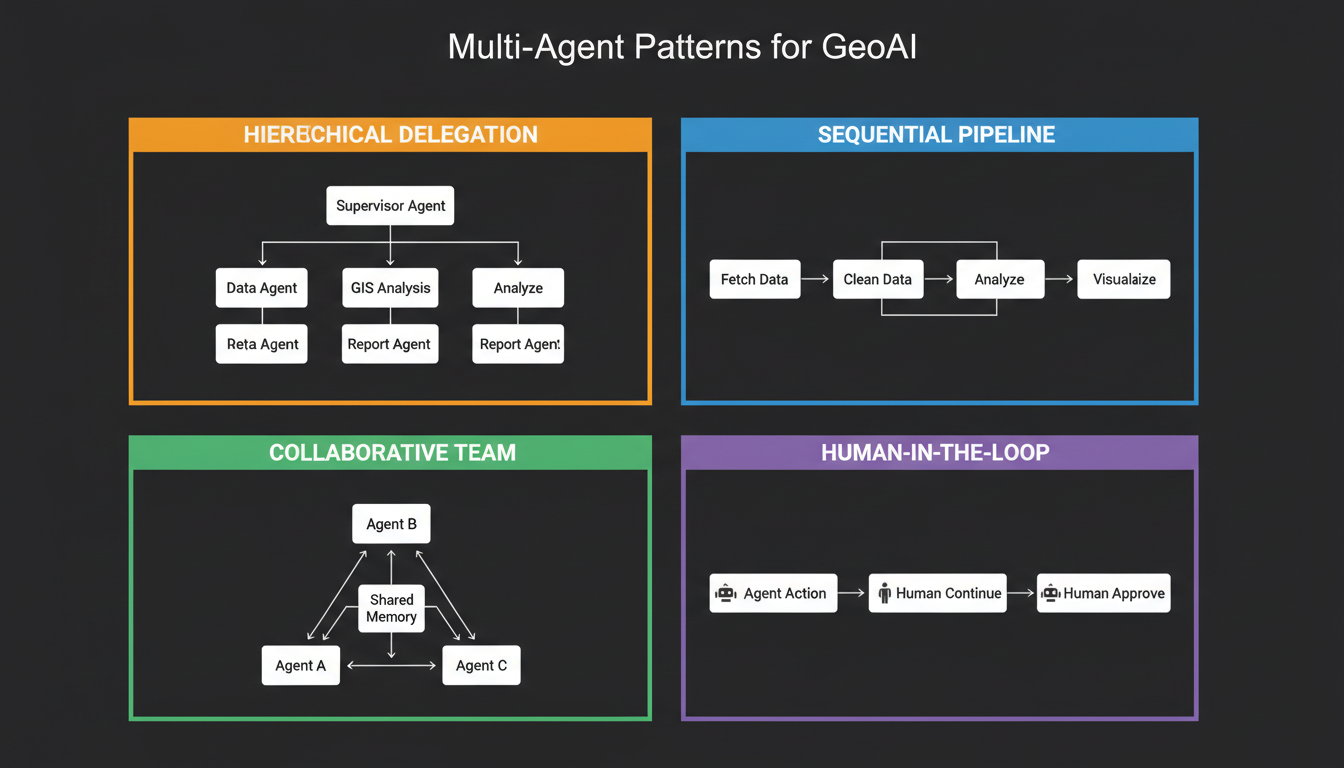

9.3 Multi-Agent Patterns

9.4 Reflective Agent Pattern

Stage	Description
Execute	Run the geoprocessing task
Output	Capture raw results
Critic Review	Evaluate: spatial accuracy, methodology, completeness, edge cases
Improve Plan	Refine approach based on critique
Iterate	Repeat N times until quality threshold met

Execute Task → Output Results → Critic Review → Improve Plan → (iterate)

10. Code Implementation Examples

10.1 Complete GeoAI Agent with LangGraph

"""
GeoAI Agent - Complete Implementation
A production-ready geospatial AI agent using LangGraph
"""

import operator
from typing import Annotated, TypedDict, Sequence
from langchain_core.messages import BaseMessage, HumanMessage, SystemMessage, ToolMessage
from langgraph.graph import StateGraph, START, END
from langchain_openai import ChatOpenAI
from langchain_core.tools import tool
from langgraph.prebuilt import ToolNode
import json

# ============================================================================
# STATE DEFINITION
# ============================================================================

class GeoAgentState(TypedDict):
    """State object flowing through the agent graph."""
    messages: Annotated[Sequence[BaseMessage], operator.add]
    active_skills: list[str]
    spatial_context: dict
    execution_log: list[dict]
    requires_human: bool

# ============================================================================
# GEOSPATIAL TOOLS
# ============================================================================

@tool
def buffer_analysis(
    layer_name: str,
    distance: float,
    unit: str = "meters",
    dissolve: bool = False
) -> str:
    """
    Create buffer zones around features in a layer.

    Args:
        layer_name: Name of the input feature layer
        distance: Buffer distance value
        unit: Unit of distance (meters, kilometers, feet, miles)
        dissolve: Whether to dissolve overlapping buffers

    Returns:
        Summary of buffer operation results
    """
    # Implementation would call ArcPy, GeoPandas, or GIS API
    result = {
        "operation": "buffer",
        "input_layer": layer_name,
        "distance": f"{distance} {unit}",
        "features_created": 47,
        "total_area_km2": 12.5,
        "dissolved": dissolve,
        "output_layer": f"{layer_name}_buffer_{distance}{unit[0]}"
    }
    return json.dumps(result, indent=2)

@tool
def spatial_intersection(layer_a: str, layer_b: str, output_name: str = None) -> str:
    """
    Compute geometric intersection between two layers.

    Args:
        layer_a: First input layer
        layer_b: Second input layer
        output_name: Optional output layer name

    Returns:
        Summary of intersection results
    """
    result = {
        "operation": "intersection",
        "layer_a": layer_a,
        "layer_b": layer_b,
        "features_output": 23,
        "output_layer": output_name or f"{layer_a}_intersect_{layer_b}"
    }
    return json.dumps(result, indent=2)

@tool
def extract_by_attribute(layer: str, field: str, operator: str, value) -> str:
    """
    Select features by attribute query.

    Args:
        layer: Input layer name
        field: Field name to query
        operator: Comparison operator (=, <>, <, >, <=, >=, LIKE)
        value: Value to compare against

    Returns:
        Summary of selected features
    """
    result = {
        "operation": "attribute_selection",
        "layer": layer,
        "query": f"{field} {operator} {value}",
        "features_selected": 156,
        "total_features": 500
    }
    return json.dumps(result, indent=2)

@tool
def zonal_statistics(zone_layer: str, value_raster: str, statistics: list) -> str:
    """
    Calculate statistics for raster values within zone polygons.

    Args:
        zone_layer: Zone polygon layer name
        value_raster: Input raster dataset path
        statistics: List of statistics (mean, max, min, sum, std, count)

    Returns:
        Statistics table as JSON
    """
    result = {
        "operation": "zonal_statistics",
        "zone_layer": zone_layer,
        "value_raster": value_raster,
        "statistics": {
            stat: round(10 + hash(f"{zone_layer}{stat}") % 90, 2)
            for stat in statistics
        }
    }
    return json.dumps(result, indent=2)

@tool
def generate_map(layer: str, attribute: str, method: str = "natural_breaks", classes: int = 5) -> str:
    """
    Generate a thematic map from a layer.

    Args:
        layer: Layer to visualize
        attribute: Attribute field to map
        method: Classification method
        classes: Number of classes

    Returns:
        Map generation summary
    """
    result = {
        "operation": "thematic_map",
        "layer": layer,
        "attribute": attribute,
        "classification": method,
        "classes": classes,
        "map_url": f"/maps/{layer}_{attribute}_{method}.html",
        "legend": f"Generated {classes}-class {method} legend for {attribute}"
    }
    return json.dumps(result, indent=2)

# Tool registry
GIS_TOOLS = [buffer_analysis, spatial_intersection, extract_by_attribute,
             zonal_statistics, generate_map]

# ============================================================================
# LLM INITIALIZATION
# ============================================================================

# Primary reasoning model (capable)
llm = ChatOpenAI(model="gpt-4o", temperature=0)
llm_with_tools = llm.bind_tools(GIS_TOOLS)

# ============================================================================
# GRAPH NODES
# ============================================================================

def reasoning_node(state: GeoAgentState):
    """Central intelligence node - analyzes state and determines next action."""
    response = llm_with_tools.invoke(state["messages"])
    return {
        "messages": [response],
        "execution_log": state.get("execution_log", []) + [{
            "node": "reasoning",
            "tool_calls": response.tool_calls if hasattr(response, 'tool_calls') else []
        }]
    }

def planning_node(state: GeoAgentState):
    """Breaks down complex geospatial tasks into executable steps."""
    planner_prompt = """You are a geospatial task planner. Given a user request,
    break it down into specific GIS operations.

    Available operations:
    - buffer_analysis: Create buffer zones
    - spatial_intersection: Find overlapping areas
    - extract_by_attribute: Filter by attributes
    - zonal_statistics: Calculate raster stats by zone
    - generate_map: Create thematic visualizations

    Provide your plan as a numbered list of tool calls with specific parameters."""

    messages = state["messages"] + [SystemMessage(content=planner_prompt)]
    response = llm.invoke(messages)
    return {"messages": [response]}

def human_review_node(state: GeoAgentState):
    """Human-in-the-loop checkpoint for critical operations."""
    return {"requires_human": True, "messages": state["messages"]}

# ============================================================================
# ROUTING LOGIC
# ============================================================================

def router(state: GeoAgentState) -> str:
    """Inspects last message to determine next operational node."""
    last_message = state["messages"][-1]

    # Route to tool execution if tool calls present
    if hasattr(last_message, 'tool_calls') and last_message.tool_calls:
        return "execute_tools"

    # Check for completion signal
    content = last_message.content.lower() if hasattr(last_message, 'content') else ""
    if "final answer" in content or "task complete" in content:
        return "end"

    # Check if human review needed
    if state.get("requires_human", False):
        return "human_review"

    return "end"

def should_human_review(state: GeoAgentState) -> str:
    """Determine if destructive or expensive operations need approval."""
    last_message = state["messages"][-1]
    if hasattr(last_message, 'tool_calls'):
        for tc in last_message.tool_calls:
            if tc.get("name") in ["buffer_analysis", "spatial_intersection"]:
                # Auto-approve standard operations
                return "execute_tools"
    return "execute_tools"

# ============================================================================
# GRAPH CONSTRUCTION
# ============================================================================

workflow = StateGraph(GeoAgentState)

# Add nodes
workflow.add_node("reason", reasoning_node)
workflow.add_node("plan", planning_node)
workflow.add_node("execute_tools", ToolNode(GIS_TOOLS))
workflow.add_node("human_review", human_review_node)

# Define edges
workflow.add_edge(START, "reason")

# Conditional routing from reasoning
workflow.add_conditional_edges(
    "reason",
    router,
    {
        "execute_tools": "execute_tools",
        "human_review": "human_review",
        "end": END
    }
)

# Return paths
workflow.add_edge("execute_tools", "reason")
workflow.add_edge("human_review", "reason")
workflow.add_edge("plan", "reason")

# Compile
geo_agent = workflow.compile()

# ============================================================================
# USAGE EXAMPLE
# ============================================================================

if __name__ == "__main__":
    # Example query
    query = """
    I need to identify flood risk areas for schools near the river.
    1. Find all schools within 500 meters of the river
    2. Create 500m buffers around the river
    3. Intersect buffers with school locations
    4. Generate a risk map
    """

    initial_state = {
        "messages": [HumanMessage(content=query)],
        "active_skills": [],
        "spatial_context": {},
        "execution_log": [],
        "requires_human": False
    }

    result = geo_agent.invoke(initial_state)
    print("Agent Response:")
    print(result["messages"][-1].content)

10.2 CrewAI Multi-Agent Geospatial Team

"""
GeoAI Crew - Multi-Agent Geospatial Analysis Team
Uses CrewAI for collaborative spatial analysis
"""

from crewai import Agent, Task, Crew, Process
from crewai.tools import tool
import os

# ============================================================================
# TOOLS
# ============================================================================

@tool
def search_stac_catalog(query: str, bbox: list, date_range: str) -> str:
    """Search STAC catalogs for satellite imagery."""
    return f"Found 12 Sentinel-2 scenes for {query} in bbox {bbox} from {date_range}"

@tool
def run_geoprocessing(tool_name: str, inputs: dict) -> str:
    """Execute a geoprocessing tool."""
    return f"Executed {tool_name} with inputs: {inputs}. Output: result.shp"

@tool
def classify_land_cover(image_path: str, model: str) -> str:
    """Run land cover classification on imagery."""
    return f"Classified {image_path} using {model}. 8 classes identified."

@tool
def generate_report(analysis_results: str, template: str) -> str:
    """Generate analysis report from results."""
    return f"Report generated using {template}. Contains: {analysis_results}"

# ============================================================================
# AGENTS
# ============================================================================

data_specialist = Agent(
    role="Geospatial Data Specialist",
    goal="Acquire and prepare the highest quality spatial data for analysis",
    backstory="""You are an expert geospatial data engineer with 10+ years of experience
    in remote sensing, satellite imagery, and spatial data infrastructure. You know every
    STAC catalog, OGC service, and geospatial API. You excel at finding, downloading, and
    preprocessing spatial data for analysis workflows.""",
    tools=[search_stac_catalog],
    verbose=True,
    allow_delegation=False
)

spatial_analyst = Agent(
    role="Senior Spatial Analyst",
    goal="Perform rigorous geospatial analysis to extract actionable insights",
    backstory="""You are a senior GIS analyst specializing in environmental modeling,
    spatial statistics, and geoprocessing. You have deep expertise in raster analysis,
    vector operations, and spatial modeling. You always validate your results and document
    your methodology thoroughly.""",
    tools=[run_geoprocessing, classify_land_cover],
    verbose=True,
    allow_delegation=False
)

report_writer = Agent(
    role="Geospatial Report Writer",
    goal="Create clear, comprehensive reports that communicate findings effectively",
    backstory="""You are a technical writer specializing in geospatial analysis documentation.
    You transform complex spatial analysis results into clear, actionable reports with
    beautiful maps and visualizations. Your reports are used by decision-makers at all levels.""",
    tools=[generate_report],
    verbose=True,
    allow_delegation=False
)

# ============================================================================
# TASKS
# ============================================================================

task_acquire_data = Task(
    description="""
    Search for and acquire satellite imagery for the study area (bounding box:
    [-95.5, 29.5, -95.0, 30.0]) covering January-June 2024.
    Find Sentinel-2 L2A products with \<10% cloud cover.
    Also search for elevation data (DEM) and land cover reference data.
    Return a complete inventory of available datasets with their IDs and metadata.
    """,
    agent=data_specialist,
    expected_output="A structured list of all acquired datasets with IDs, dates, and quality metrics"
)

task_analyze = Task(
    description="""
    Using the acquired satellite imagery, perform the following analysis:
    1. Preprocess imagery (atmospheric correction, cloud masking)
    2. Calculate NDVI vegetation index
    3. Perform land cover classification using supervised classification
    4. Identify areas of vegetation change between time periods
    5. Generate statistics: total area by land cover class, change detection summary

    Document all parameters and methods used.
    """,
    agent=spatial_analyst,
    context=[task_acquire_data],
    expected_output="Analysis results with methodology documentation and key statistics"
)

task_report = Task(
    description="""
    Create a comprehensive geospatial analysis report including:
    1. Executive summary of findings
    2. Methodology section with all parameters
    3. Results with tabulated statistics
    4. Visual description of map outputs
    5. Recommendations based on analysis

    Format as a professional technical report suitable for stakeholder review.
    """,
    agent=report_writer,
    context=[task_analyze],
    expected_output="Complete technical report in markdown format with all sections"
)

# ============================================================================
# CREW EXECUTION
# ============================================================================

crew = Crew(
    agents=[data_specialist, spatial_analyst, report_writer],
    tasks=[task_acquire_data, task_analyze, task_report],
    process=Process.sequential,
    verbose=True
)

if __name__ == "__main__":
    result = crew.kickoff()
    print("\n" + "="*60)
    print("FINAL REPORT")
    print("="*60)
    print(result)

10.3 GeoAgent with Live Map Integration

"""
GeoAgent Live Map Example
Interactive geospatial AI agent bound to a live map widget
"""

import leafmap
from geoagent import for_leafmap, GeoAgentConfig

# Create map
m = leafmap.Map(center=[35.9606, -83.9207], zoom=10)

# Configure agent with specific provider
config = GeoAgentConfig(
    provider="openai",
    model="gpt-4o",
    temperature=0.1
)

# Bind agent to map
agent = for_leafmap(m, config=config)

# Interactive geospatial queries
queries = [
    "Add a marker for Knoxville, Tennessee and zoom to it",
    "Change the basemap to satellite imagery",
    "Load the OpenStreetMap buildings layer for this area",
    "Set the opacity of the buildings layer to 0.6",
    "Add a buffer of 1km around the Knoxville marker",
    "List all layers currently on the map",
    "Save the current map view as map_export.png"
]

# Execute queries
for query in queries:
    print(f"\n🗣️  User: {query}")
    response = agent.chat(query)
    print(f"🤖 Agent: {response.answer_text}")

# Display interactive map
m

10.4 MCP Server for GIS Tools

"""
GIS MCP Server - Expose geoprocessing tools via Model Context Protocol
"""

from mcp.server import Server
from mcp.types import Tool, TextContent
import json

# Initialize MCP server
server = Server("gis-mcp-server")

# Define GIS tools exposed via MCP
@server.list_tools()
async def list_tools():
    return [
        Tool(
            name="buffer_geometry",
            description="Create buffer zones around input geometries",
            inputSchema={
                "type": "object",
                "properties": {
                    "layer": {"type": "string"},
                    "distance": {"type": "number"},
                    "unit": {"type": "string", "enum": ["m", "km", "ft", "mi"]}
                },
                "required": ["layer", "distance"]
            }
        ),
        Tool(
            name="spatial_query",
            description="Query features by spatial relationship",
            inputSchema={
                "type": "object",
                "properties": {
                    "target_layer": {"type": "string"},
                    "query_layer": {"type": "string"},
                    "relationship": {"type": "string", "enum": ["intersects", "within", "contains", "near"]}
                },
                "required": ["target_layer", "query_layer", "relationship"]
            }
        ),
        Tool(
            name="raster_analysis",
            description="Perform raster analysis operations",
            inputSchema={
                "type": "object",
                "properties": {
                    "operation": {"type": "string", "enum": ["clip", "reclassify", "calculate_slope", "calculate_aspect"]},
                    "input_raster": {"type": "string"},
                    "parameters": {"type": "object"}
                },
                "required": ["operation", "input_raster"]
            }
        )
    ]

@server.call_tool()
async def call_tool(name: str, arguments: dict):
    """Execute GIS tool calls from MCP clients."""

    if name == "buffer_geometry":
        result = execute_buffer(
            layer=arguments["layer"],
            distance=arguments["distance"],
            unit=arguments.get("unit", "m")
        )
        return [TextContent(type="text", text=json.dumps(result))]

    elif name == "spatial_query":
        result = execute_spatial_query(
            target=arguments["target_layer"],
            query=arguments["query_layer"],
            relationship=arguments["relationship"]
        )
        return [TextContent(type="text", text=json.dumps(result))]

    elif name == "raster_analysis":
        result = execute_raster_op(
            operation=arguments["operation"],
            raster=arguments["input_raster"],
            params=arguments.get("parameters", {})
        )
        return [TextContent(type="text", text=json.dumps(result))]

    else:
        raise ValueError(f"Unknown tool: {name}")

def execute_buffer(layer: str, distance: float, unit: str):
    """Execute buffer geoprocessing."""
    return {
        "status": "success",
        "operation": "buffer",
        "input": {"layer": layer, "distance": distance, "unit": unit},
        "output_layer": f"{layer}_buffer_{distance}{unit}",
        "features_created": 47,
        "area_km2": 12.5
    }

def execute_spatial_query(target: str, query: str, relationship: str):
    """Execute spatial query."""
    return {
        "status": "success",
        "operation": "spatial_query",
        "relationship": relationship,
        "features_selected": 23,
        "total_features": 150
    }

def execute_raster_op(operation: str, raster: str, params: dict):
    """Execute raster analysis."""
    return {
        "status": "success",
        "operation": operation,
        "input_raster": raster,
        "output_raster": f"{raster}_{operation}.tif",
        "parameters": params
    }

if __name__ == "__main__":
    import asyncio
    from mcp.server.stdio import stdio_server

    async def main():
        async with stdio_server() as (read_stream, write_stream):
            await server.run(
                read_stream,
                write_stream,
                server.create_initialization_options()
            )

    asyncio.run(main())

11. Real-World Use Cases

11.1 Disaster Response & Emergency Management

Scenario: Post-hurricane damage assessment

┌─────────────────────────────────────────────────────────────────┐
│            AUTONOMOUS DISASTER RESPONSE AGENT                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  INPUT: "Assess flood damage in affected coastal region"         │
│                                                                  │
│  STEP 1: Data Acquisition                                        │
│    ├── Retrieve pre-event satellite imagery (Sentinel-2)         │
│    ├── Retrieve post-event satellite imagery (Maxar)             │
│    ├── Collect DEM for flood modeling                            │
│    └── Load critical infrastructure layer (hospitals, roads)     │
│                                                                  │
│  STEP 2: Change Detection                                        │
│    ├── Run deep learning change detection model                  │
│    ├── Identify destroyed buildings                              │
│    └── Detect road blockages                                     │
│                                                                  │
│  STEP 3: Flood Modeling                                          │
│    ├── Run hydrological model with rainfall data                 │
│    ├── Generate flood extent polygons                            │
│    └── Calculate flood depth raster                              │
│                                                                  │
│  STEP 4: Impact Analysis                                         │
│    ├── Intersect flood zones with population data                │
│    ├── Identify affected critical facilities                     │
│    └── Calculate population at risk                              │
│                                                                  │
│  STEP 5: Report Generation                                       │
│    ├── Generate damage assessment map                            │
│    ├── Prioritize rescue routes                                  │
│    └── Create situation report with statistics                   │
│                                                                  │
│  OUTPUT: Damage map, prioritized response plan, statistics       │
└─────────────────────────────────────────────────────────────────┘

11.2 Urban Planning & Smart Cities

Scenario: Automated zoning compliance checking

Agent	Task	Tools Used
Data Agent	Retrieve building permits, zoning layers, height restrictions	WFS queries, attribute extraction
Analysis Agent	Check compliance: setbacks, height limits, density	Overlay, buffer, spatial join
Reporting Agent	Generate compliance report with maps	Thematic mapping, layout generation

11.3 Environmental Monitoring

Scenario: Deforestation early warning system

# Conceptual workflow
def deforestation_monitor():
    """
    Autonomous monitoring agent that:
    1. Ingests monthly Sentinel-2 imagery via STAC
    2. Runs random forest classifier for forest/non-forest
    3. Compares with baseline land cover
    4. Detects anomalous clearing events
    5. Alerts authorities with precise locations
    6. Generates enforcement priority map
    """
    pass

11.4 Infrastructure Inspection

Application: Automated road condition assessment

Input: Aerial/drone imagery
Agent Pipeline: Image ingestion → crack detection AI → severity classification → priority map → work order generation
Impact: 90% reduction in manual inspection time

11.5 Insurance Risk Assessment

Application: Property risk scoring

Data: Elevation, flood zones, historical claims, building footprints, vegetation proximity
Agent: Autonomous multi-factor risk model with spatial interpolation
Output: Risk surface with per-property scores

12. GIS Platforms with AI Agent Integration

12.1 ArcGIS (Esri)

Component	Description	Status
AI Framework	Modular foundation for AI capabilities	Production
AI Assistants	Natural language UX across products	Multiple in Beta
AI Agents	Workflow orchestration components	Preview
GeoAI Tools	Pre-trained ML models for spatial analysis	Production
Notebook Assistant	Python code generation for ArcPy	Beta
Arcade Assistant	Expression writing helper	Beta

Key Features:

75+ pre-trained models for common GIS workflows
AI framework supports both hosted and bring-your-own-model
Cross-product assistants (Map Viewer, Pro, Online)
Trusted AI principles: Security, Privacy, Transparency, Fairness, Reliability, Accountability

12.2 CARTO

Feature	Description
AI Agents	Public preview, natural language map interaction
Context Layer	Automatic map configuration, tool definitions
Agent Configuration Assistant	Conversational agent setup
MCP Tools	CARTO MCP Server for geospatial operations

12.3 SuperMap AgentX Server

Feature	Specification
LLM Support	Qwen series, DeepSeek series
MCP Tools	200+ operators (iServer), 60+ operators (iPortal)
Agent Types	Knowledge, Workflow, Autonomous
Architecture	x86, ARM (Kunpeng), multi-OS
Database	Yugong Spatial Database (co-developed with Huawei)

12.4 Open Source Ecosystem

Project	Description	Link
GeoAgent	Shared agent layer for geospatial Python	github.com/opengeos/GeoAgent
GeoAI	Python package for AI + geospatial analysis	opengeoai.org
Leafmap	Interactive mapping with AI integration	leafmap.org
TorchGeo	Deep learning for geospatial data	torchgeo.readthedocs.io
GeoAI-ML	ML toolkit for ArcGIS / open source	esri.github.io/geoai-ml

13. Building Your First GeoAI Agent

Step-by-Step Guide

Step 1: Define Your Use Case
├── What geospatial problem are you solving?
├── Who are the users?
├── What data sources are needed?
└── What is the desired output?

Step 2: Choose Your Architecture
├── Single agent or multi-agent?
├── Knowledge, Workflow, or Autonomous?
├── Which framework (LangChain, CrewAI, AutoGen, Custom)?
└── LLM provider (OpenAI, Anthropic, Local)?

Step 3: Design Your Tools
├── List all GIS operations needed
├── Define tool schemas (name, params, returns)
├── Implement tool functions
└── Register with agent

Step 4: Build Context Layer
├── Data catalog with field descriptions
├── Spatial reference system definitions
├── Domain knowledge (RAG or fine-tuning)
└── Example queries and expected outputs

Step 5: Implement Agent Logic
├── Define state management
├── Set up routing/decision logic
├── Add memory and context handling
└── Configure error handling and retries

Step 6: Add Safety & Guardrails
├── Confirmation for destructive operations
├── Token and cost limits
├── Human-in-the-loop checkpoints
└── Output validation

Step 7: Test & Iterate
├── Unit tests for individual tools
├── Integration tests for workflows
├── User acceptance testing
└── Performance optimization

Step 8: Deploy & Monitor
├── API endpoint or web app
├── Logging and observability
├── Usage analytics
└── Continuous improvement loop

14. Production Considerations

14.1 Cost Management

Strategy	Implementation	Savings
Model Tiering	Use GPT-4o for reasoning, GPT-4o-mini for execution	50-70%
Tool Limiting	Start with 3-5 tools, expand as needed	30-40%
Caching	Cache frequent queries and results	20-30%
Max Iterations	Set hard limits on agent loops	Prevents runaway costs
Async Processing	Queue expensive operations	Better resource use

14.2 Reliability Patterns

┌─────────────────────────────────────────────────────────────────┐
│                   PRODUCTION SAFEGUARDS                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  1. OBSERVABILITY                                                │
│     ├── Log every LLM call with prompt and response              │
│     ├── Track tool invocations and results                       │
│     ├── Monitor token usage and costs                            │
│     └── Measure latency per operation                            │
│                                                                  │
│  2. ERROR HANDLING                                               │
│     ├── Retry with exponential backoff                           │
│     ├── Circuit breaker for failing tools                        │
│     ├── Graceful degradation (partial results)                   │
│     └── Fallback to human escalation                             │
│                                                                  │
│  3. SAFETY GUARDRAILS                                            │
│     ├── Confirmation gates for destructive ops                   │
│     ├── Rate limiting on tool calls                              │
│     ├── Input sanitization and validation                        │
│     └── Output schema validation                                 │
│                                                                  │
│  4. HUMAN-IN-THE-LOOP                                            │
│     ├── Review checkpoints for critical analysis                 │
│     ├── Approval workflow for data publication                   │
│     ├── Override capability for expert users                     │
│     └── Feedback collection for improvement                      │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

14.3 Performance Optimization

Technique	When to Use
Fast Mode	Quick map controls, simple queries
Streaming	Long-running analysis for UX feedback
Parallel Tool Calls	Independent operations
Progressive Disclosure	Load skills only when needed
Vector Search	Large tool registries

14.4 Security Checklist

15. Future Outlook

2026-2030 Roadmap

2026 ──► Production workflow agents become mainstream
     ├── Multi-modal agents (text + map + image + 3D)
     ├── Standardized MCP tool ecosystem for GIS
     └── Real-time streaming spatial analysis

2027 ──► Autonomous agents reach 85%+ task success rate
     ├── Edge deployment for field devices
     ├── Cross-platform agent interoperability
     └── Self-improving agents from feedback

2028 ──► Agent marketplaces for geospatial skills
     ├── Domain-specific agents (cadastral, utilities, etc.)
     ├── Federated multi-organization analysis
     └── Digital twin integration

2029+ ──► Fully autonomous geospatial operations centers
      ├── Predictive maintenance for infrastructure
      ├── Self-updating spatial databases
      └── AI-driven urban planning recommendations

Emerging Trends

Trend	Impact
Agentic RAG (GeoAgentic-RAG)	Multi-agent retrieval with spatial reasoning
MCP Ecosystem Standardization	Universal GIS tool connectors
Local LLM Deployment	Edge AI for sensitive geospatial data
Multi-Modal Vision	Agents that interpret maps, charts, and satellite imagery
Federated Agents	Cross-organizational spatial analysis without data sharing

16. Resources & References

Official Documentation

Research Papers

Liang et al. (2026). GeoAgentic-RAG: A Multi-Agent framework for autonomous geospatial analysis. Science of Remote Sensing.
ACM SIGSPATIAL (2025). GeoAgent: An Agentic AI Framework for Spatial Query Understanding.
Song Guanfu (2025). Exploring Geospatial AI Agent Technology. SuperMap.

Framework Documentation

Learning Resources

Cognitive Class: AI-Powered Agent for Geospatial Insights
CARTO Academy: AI Agents Tutorial
Esri Training: GeoAI Fundamentals

Community

GeoAI Slack / Discord communities
r/gis and r/AI_Agents on Reddit
Stack Overflow: [geoai] and [langchain] tags

17. Glossary

Term	Definition
Agent	An AI system that autonomously plans and executes tasks using tools
CrewAI	Role-based multi-agent orchestration framework
GeoAI	Integration of geospatial data and AI techniques
GIS	Geographic Information System
LangChain	Modular framework for LLM applications
LangGraph	Graph-based stateful agent framework (LangChain extension)
LLM	Large Language Model
MCP	Model Context Protocol - standardized tool connection
RAG	Retrieval-Augmented Generation
ReAct	Reason + Act agent pattern
RS	Remote Sensing
STAC	SpatioTemporal Asset Catalog
Tool Calling	LLM invoking external functions
Vector Store	Database for semantic search embeddings
Workflow Agent	Agent executing predefined analysis pipelines

Contributing: This guide is a living document. Contributions, corrections, and additions are welcome via pull requests.

License: This document is shared under CC BY-SA 4.0.

Disclaimer: AI agent capabilities evolve rapidly. Verify current feature availability with respective platform vendors before production deployment.

1. Executive Summary
2. What is GeoAI?
3. Geospatial AI Agents: Core Concepts
4. System Architecture & Design Patterns
5. Three-Tier Geospatial Agent Architecture
6. Types of Geospatial AI Agents
7. AI Agent Frameworks for GeoAI
8. Tool Systems: MCP, RAG & Function Calling
9. Agent Design Patterns
10. Code Implementation Examples
11. Real-World Use Cases
12. GIS Platforms with AI Agent Integration
13. Building Your First GeoAI Agent
14. Production Considerations
15. Future Outlook
16. Resources & References
17. Glossary

1. Executive Summary

Key Takeaways

Capability	Impact
Autonomous Spatial Analysis	AI agents can plan and execute multi-step geoprocessing workflows with minimal human intervention
Natural Language to GIS	Users can interact with GIS systems through conversational interfaces without writing queries
Multi-Agent Orchestration	Teams of specialized agents collaborate on complex geospatial tasks
Democratized Access	Non-GIS experts can access powerful spatial analysis capabilities
Workflow Automation	Repetitive geoprocessing tasks are automated, reducing analysis time by 70-90%

2. What is GeoAI?

Definition

Evolution of AI in GIS

1980s ──► Command-line GIS Systems
   │
1990s ──► Graphical User Interfaces (GUI) + Desktop GIS
   │
2000s ──► Web GIS + Cloud Computing + Mobile Platforms
   │
2010s ──► Machine Learning for spatial analysis & image classification
   │
Late 2010s ──► Deep Learning embedded in core GIS workflows
   │
2020s ──► Large Language Models (LLMs) + Computer Vision
   │
2024-2026 ──► AI Agents: Autonomous, multi-step geospatial workflow orchestration

The Four Pillars of GeoAI

3. Geospatial AI Agents: Core Concepts

What is a Geospatial AI Agent?

A geospatial AI agent is an autonomous or semi-autonomous software component that:

Perceives geospatial data (vector, raster, 3D, temporal)
Reasons about spatial relationships and domain context
Plans multi-step analysis workflows
Executes GIS tools, APIs, and geoprocessing services
Responds with actionable insights, maps, or derived datasets

Core Agent Systems

Every geospatial AI agent consists of four interconnected systems:

Agent vs. Assistant vs. Traditional Script

Dimension	Traditional Script	AI Assistant	AI Agent
Autonomy	None (deterministic)	Low (guided)	High (self-directed)
Reasoning	None	LLM-powered	LLM + spatial reasoning
Tool Use	Hardcoded	Predefined skills	Dynamic tool selection
Adaptability	None	Limited context	Full replanning
Human Input	Batch execution	Interactive	Human-in-the-loop optional
Error Handling	Fail/Retry	Manual recovery	Self-correction

4. System Architecture & Design Patterns

High-Level GeoAI Platform Architecture

5. Three-Tier Geospatial Agent Architecture

A complete geospatial AI agent application follows a three-tier architecture:

6. Types of Geospatial AI Agents

6.1 Knowledge Agents (Level 1)

Purpose: Information retrieval and Q&A with geospatial domain knowledge.

Architecture:

User Query → Intent Classification → RAG Retrieval → LLM Synthesis → Cited Response

Capabilities:

Document search with semantic understanding
Multi-turn dialogue for complex queries
Automatic escalation to human agents
Knowledge base construction toolkit

Example Use Case: Real estate registration intelligent Q&A system delivering professional-grade precision in single-turn and multi-turn dialogues.

Strengths: Broad applicability, mature, high accuracy for information retrieval. Limitations: No execution capabilities; cannot perform actual geoprocessing.

6.2 Workflow Agents (Level 2)

Purpose: Execute predefined geoprocessing workflows guided by natural language.

Architecture:

Stage	Action	Description
1	Parse Intent	LLM extracts intent and parameters from natural language
2	Load Data	Retrieve the specified dataset
3	Classify	Apply classification method (natural breaks, quantile, etc.)
4	Symbolize	Apply color scheme and styling
5	Render	Generate final map visualization

User Command → LLM Parser → Workflow Engine → [Step 1 → Step 2 → Step 3 → Step N] → Output

Capabilities:

Thematic map generation from commands
Data transformation pipelines
Format conversion workflows
Visualization and styling automation

Strengths: High success rate for complex tasks, production-ready, hybrid human-AI control. Limitations: Requires predefined workflows; less flexible than autonomous agents.

6.3 Autonomous Agents (Level 3)

Purpose: Self-directed task planning and execution with iterative optimization.

Architecture (ReAct Pattern):

User Query → Task Planning → [Execute → Observe → Reason] (loop) → Final Output

Operational Logic:

Task Planning: Decompose high-level goal into actionable steps
Step Execution: Execute the current step using available tools
Observation: Capture execution results
Re-Planning: Evaluate outcomes, optimize subsequent strategies
Iteration: Repeat until task completion

Capabilities:

Independent reasoning and planning
Dynamic tool chain discovery
Self-correction and replanning
Multi-source data synthesis

Example Use Case: Autonomous landslide risk assessment combining DEM analysis, rainfall data, soil properties, and land cover classification without predefined workflow.

Strengths: Highest autonomy, can handle novel tasks, adapts to changing conditions. Limitations: Lower task success rate (currently), higher token consumption, requires robust guardrails.

Agent Type Comparison Matrix

Dimension	Knowledge Agent	Workflow Agent	Autonomous Agent
Autonomy Level	Low	Medium	High
Task Success Rate	High (>90%)	High (>85%)	Medium (60-75%)
Production Readiness	Production	Production	Experimental/Preview
Use Case Fit	Q&A, Search	Automation, Mapping	Novel Analysis
Human Oversight	Minimal	Workflow design	Heavy guardrails
Token Cost	Low	Medium	High
LLM Requirements	Standard	Standard	Advanced reasoning

7. AI Agent Frameworks for GeoAI

7.1 Framework Comparison

Framework	Architecture	Best For	Multi-Agent	Learning Curve	Geo Integration
LangChain/LangGraph	Modular / Graph-based	Complex workflows, RAG, stateful apps	Yes (via LangGraph)	Steep	Excellent (600+ integrations)
CrewAI	Role-based / Crew+Flow	Rapid prototyping, team-based tasks	Native	Easy	Good (Python-based)
AutoGen	Conversation-driven	Multi-agent collaboration, code execution	Native	Moderate	Moderate
Strands Agents	Event-driven	Geospatial tool binding, QGIS integration	Yes	Moderate	Native (GeoAgent)
Custom (FastAPI)	API-based	Production deployments, fine-grained control	Custom	Flexible	Full control

7.2 LangChain / LangGraph for GeoAI

Strengths:

600+ integrations including major GIS libraries
Graph-based stateful workflows (LangGraph)
First-class persistence and checkpointing
LangSmith observability

Best For: Complex, long-running geospatial workflows requiring state management and precise control over data flow.

Architecture Pattern:

# LangGraph-based GeoAI Agent (Conceptual)
from langgraph.graph import StateGraph, START, END
from langchain_core.tools import tool

# State definition
class GeoAgentState(TypedDict):
    messages: Annotated[list, operator.add]
    spatial_data: dict
    analysis_results: dict
    active_tools: list[str]

# Tool definitions
@tool
def buffer_geometry(layer_name: str, distance: float) -> str:
    """Buffer a geometry layer by specified distance."""
    ...

@tool
def spatial_join(target_layer: str, join_layer: str) -> str:
    """Perform spatial join between two layers."""
    ...

@tool
def clip_raster(raster_path: str, bounds: tuple) -> str:
    """Clip raster to specified bounds."""
    ...

# Graph construction
workflow = StateGraph(GeoAgentState)
workflow.add_node("understand_query", understand_node)
workflow.add_node("plan_analysis", planning_node)
workflow.add_node("execute_gis", ToolNode(gis_tools))
workflow.add_node("evaluate_results", evaluation_node)

workflow.add_edge(START, "understand_query")
workflow.add_conditional_edges("understand_query", route_to_planning)
workflow.add_conditional_edges("plan_analysis", route_to_execution)
workflow.add_edge("execute_gis", "evaluate_results")
workflow.add_conditional_edges("evaluate_results", should_continue)

geo_agent = workflow.compile()

7.3 CrewAI for GeoAI

Strengths:

Fastest prototyping (working multi-agent in <100 lines)
Role-based abstraction maps well to GIS team structures
Sequential and Hierarchical execution patterns
YAML configuration for non-developers

Best For: Pipeline workflows where different agents own different phases (data acquisition → processing → analysis → visualization).

Architecture Pattern:

# CrewAI Geo Crew Configuration (YAML)
agents:
  data_acquisition_agent:
    role: "Geospatial Data Acquisition Specialist"
    goal: "Find and retrieve the most relevant spatial datasets for analysis"
    backstory: "You are an expert in geospatial data sources, STAC catalogs, and API endpoints. You know exactly where to find elevation data, satellite imagery, and vector datasets."
    tools:
      - stac_search
      - wfs_query
      - data_download

  spatial_analyst:
    role: "Senior Spatial Analyst"
    goal: "Perform rigorous geospatial analysis to extract meaningful insights"
    backstory: "You are a GIS professional with 15 years of experience in spatial analysis, geoprocessing, and cartography."
    tools:
      - buffer_tool
      - overlay_analysis
      - interpolation
      - cluster_analysis

  cartographer:
    role: "Professional Cartographer"
    goal: "Create beautiful, informative maps that communicate findings clearly"
    backstory: "You are an award-winning cartographer specializing in thematic mapping and data visualization."
    tools:
      - thematic_map
      - symbolization
      - layout_design

tasks:
  acquire_data:
    description: "Retrieve DEM, land cover, and infrastructure data for {study_area}"
    agent: data_acquisition_agent
    expected_output: "List of acquired datasets with metadata"

  perform_analysis:
    description: "Analyze flood risk using acquired datasets"
    agent: spatial_analyst
    context: [acquire_data]
    expected_output: "Risk assessment results with statistics"

  create_map:
    description: "Generate final risk map with legend and annotations"
    agent: cartographer
    context: [perform_analysis]
    expected_output: "Publication-ready map document"

7.4 AutoGen for GeoAI

Strengths:

Native multi-agent conversation
Mix-and-match LLM support (Claude for reasoning + GPT-4o for tools)
Built-in sandboxed code execution
Asynchronous event-driven architecture

Best For: Research automation, iterative analysis, and scenarios where agents need to collaborate dynamically.

7.5 Strands Agents / GeoAgent (Geospatial-Native)

GeoAgent is a shared AI agent layer specifically built for geospatial Python packages, live map widgets, and QGIS plugins.

Architecture:

┌─────────────────────────────────────────────────────────────┐
│                        GeoAgent                              │
│              (Shared Geospatial Agent Layer)                 │
├─────────────────────────────────────────────────────────────┤
│  Core Concepts:                                              │
│  · GeoAgent          - High-level facade around Strands Agent│
│  · GeoAgentConfig    - Provider, model, temperature settings │
│  · GeoAgentContext   - Runtime objects (map, QGIS iface)     │
│  · @geo_tool         - Decorator for geospatial functions    │
│  · GeoToolRegistry   - Tool metadata, safety flags           │
├─────────────────────────────────────────────────────────────┤
│  Factory Functions:                                          │
│  · for_leafmap()     - Bind to leafmap.Map                   │
│  · for_anymap()      - Bind to anymap.Map                    │
│  · for_qgis()        - Bind to QGIS iface/project            │
│  · for_stac()        - Bind to STAC catalog tools            │
│  · for_nasa_opera()  - Bind to NASA OPERA tools              │
│  · create_agent()    - Custom tool integration               │
├─────────────────────────────────────────────────────────────┤
│  Provider Support:                                           │
│  OpenAI · Anthropic · Google Gemini · Ollama · LiteLLM      │
│  OpenRouter · vLLM · Amazon Bedrock · OpenAI Codex OAuth    │
├─────────────────────────────────────────────────────────────┤
│  Package Integrations:                                       │
│  leafmap · anymap · geoai · geemap · STAC · NASA Earthdata  │
└─────────────────────────────────────────────────────────────┘

Quick Start Example:

import leafmap
from geoagent import for_leafmap

# Create map and bind agent
m = leafmap.Map()
agent = for_leafmap(m)

# Natural language geospatial interaction
resp = agent.chat("Add a marker for Knoxville and zoom to it.")
resp = agent.chat("Load the STAC catalog for Sentinel-2 and display imagery.")

# Display map
m

8. Tool Systems: MCP, RAG & Function Calling

8.1 Model Context Protocol (MCP)

MCP is an open protocol that standardizes how AI agents connect to external tools and services. It provides bidirectional communication (read + write + execute).

MCP vs RAG vs Agents:

Dimension	MCP	RAG	AI Agent
Purpose	Connect LLM to tools	Retrieve knowledge	Orchestrate workflows
Direction	Bidirectional (R/W/E)	Read-only	Orchestration
Scope	Any API/tool/service	Document retrieval	End-to-end task
Analogy	The "how" (connection)	The "what" (knowledge)	The "who" (orchestrator)

8.2 RAG for Geospatial Knowledge

Retrieval-Augmented Generation grounds agent responses in domain-specific geospatial knowledge.

User Query → Query Embedding → Vector Search → Context Retrieval → LLM + Context → Response
                  │                    │
                  ▼                    ▼
           ┌──────────────┐    ┌──────────────────────┐
           │  Embedding   │    │  Geospatial KB       │
           │  Model       │    │  · Documentation     │
           │              │    │  · Standards         │
           └──────────────┘    │  · Best Practices    │
                               │  · Error Guides      │
                               │  · Domain Papers     │
                               └──────────────────────┘

8.3 GIS Tool Function Calling Schema

Example tool definitions that agents can invoke:

# GIS Tool Schema for LLM Function Calling
GIS_TOOLS = [
    {
        "name": "spatial_buffer",
        "description": "Create buffer zones around input features",
        "parameters": {
            "type": "object",
            "properties": {
                "input_layer": {"type": "string", "description": "Input feature layer name or path"},
                "distance": {"type": "number", "description": "Buffer distance in map units"},
                "unit": {"type": "string", "enum": ["meters", "kilometers", "feet", "miles"]},
                "dissolve": {"type": "boolean", "description": "Dissolve overlapping buffers"}
            },
            "required": ["input_layer", "distance"]
        }
    },
    {
        "name": "spatial_intersection",
        "description": "Compute geometric intersection of two layers",
        "parameters": {
            "type": "object",
            "properties": {
                "layer_a": {"type": "string"},
                "layer_b": {"type": "string"},
                "output_layer": {"type": "string"}
            },
            "required": ["layer_a", "layer_b"]
        }
    },
    {
        "name": "extract_by_location",
        "description": "Select features based on spatial relationship",
        "parameters": {
            "type": "object",
            "properties": {
                "target_layer": {"type": "string"},
                "source_layer": {"type": "string"},
                "relationship": {
                    "type": "string",
                    "enum": ["intersect", "within", "contains", "within_distance", "bounds"]
                },
                "distance": {"type": "number", "description": "Search distance for within_distance"}
            },
            "required": ["target_layer", "source_layer", "relationship"]
        }
    },
    {
        "name": "zonal_statistics",
        "description": "Calculate statistics for raster within zones",
        "parameters": {
            "type": "object",
            "properties": {
                "zone_layer": {"type": "string", "description": "Zone polygon layer"},
                "value_raster": {"type": "string", "description": "Input raster dataset"},
                "statistics": {
                    "type": "array",
                    "items": {"enum": ["mean", "max", "min", "sum", "std", "count", "majority"]},
                    "description": "Statistics to calculate"
                }
            },
            "required": ["zone_layer", "value_raster"]
        }
    },
    {
        "name": "geocode_addresses",
        "description": "Convert addresses to point features",
        "parameters": {
            "type": "object",
            "properties": {
                "addresses": {"type": "array", "items": {"type": "string"}},
                "country_code": {"type": "string", "description": "ISO country code for bias"},
                "output_fields": {"type": "array", "items": {"type": "string"}}
            },
            "required": ["addresses"]
        }
    },
    {
        "name": "generate_thematic_map",
        "description": "Create a thematic/choropleth map from a dataset",
        "parameters": {
            "type": "object",
            "properties": {
                "layer": {"type": "string"},
                "attribute": {"type": "string", "description": "Field to visualize"},
                "method": {"type": "string", "enum": ["natural_breaks", "equal_interval", "quantile", "manual"]},
                "classes": {"type": "integer", "description": "Number of classes (default: 5)"},
                "color_scheme": {"type": "string", "description": "Color brewer scheme name"},
                "output_format": {"type": "string", "enum": ["png", "svg", "pdf", "web"], "default": "web"}
            },
            "required": ["layer", "attribute"]
        }
    }
]

9. Agent Design Patterns

9.1 ReAct (Reason + Act) Pattern

The most common pattern for autonomous geospatial agents:

9.2 Routing Patterns

Pattern	Description	Use Case
Rule-based	Hardcoded rules trigger specific functions	Simple keyword detection
Semantic	LLM understands intent to route requests	Natural language queries
Hierarchical	Master agent delegates to sub-agents	Complex multi-domain analysis
LLM-based	LLM decides which tool/agent to call	Full autonomy

9.3 Multi-Agent Patterns

9.4 Reflective Agent Pattern

Stage	Description
Execute	Run the geoprocessing task
Output	Capture raw results
Critic Review	Evaluate: spatial accuracy, methodology, completeness, edge cases
Improve Plan	Refine approach based on critique
Iterate	Repeat N times until quality threshold met

Execute Task → Output Results → Critic Review → Improve Plan → (iterate)

10. Code Implementation Examples

10.1 Complete GeoAI Agent with LangGraph

"""
GeoAI Agent - Complete Implementation
A production-ready geospatial AI agent using LangGraph
"""

import operator
from typing import Annotated, TypedDict, Sequence
from langchain_core.messages import BaseMessage, HumanMessage, SystemMessage, ToolMessage
from langgraph.graph import StateGraph, START, END
from langchain_openai import ChatOpenAI
from langchain_core.tools import tool
from langgraph.prebuilt import ToolNode
import json

# ============================================================================
# STATE DEFINITION
# ============================================================================

class GeoAgentState(TypedDict):
    """State object flowing through the agent graph."""
    messages: Annotated[Sequence[BaseMessage], operator.add]
    active_skills: list[str]
    spatial_context: dict
    execution_log: list[dict]
    requires_human: bool

# ============================================================================
# GEOSPATIAL TOOLS
# ============================================================================

@tool
def buffer_analysis(
    layer_name: str,
    distance: float,
    unit: str = "meters",
    dissolve: bool = False
) -> str:
    """
    Create buffer zones around features in a layer.

    Args:
        layer_name: Name of the input feature layer
        distance: Buffer distance value
        unit: Unit of distance (meters, kilometers, feet, miles)
        dissolve: Whether to dissolve overlapping buffers

    Returns:
        Summary of buffer operation results
    """
    # Implementation would call ArcPy, GeoPandas, or GIS API
    result = {
        "operation": "buffer",
        "input_layer": layer_name,
        "distance": f"{distance} {unit}",
        "features_created": 47,
        "total_area_km2": 12.5,
        "dissolved": dissolve,
        "output_layer": f"{layer_name}_buffer_{distance}{unit[0]}"
    }
    return json.dumps(result, indent=2)

@tool
def spatial_intersection(layer_a: str, layer_b: str, output_name: str = None) -> str:
    """
    Compute geometric intersection between two layers.

    Args:
        layer_a: First input layer
        layer_b: Second input layer
        output_name: Optional output layer name

    Returns:
        Summary of intersection results
    """
    result = {
        "operation": "intersection",
        "layer_a": layer_a,
        "layer_b": layer_b,
        "features_output": 23,
        "output_layer": output_name or f"{layer_a}_intersect_{layer_b}"
    }
    return json.dumps(result, indent=2)

@tool
def extract_by_attribute(layer: str, field: str, operator: str, value) -> str:
    """
    Select features by attribute query.

    Args:
        layer: Input layer name
        field: Field name to query
        operator: Comparison operator (=, <>, <, >, <=, >=, LIKE)
        value: Value to compare against

    Returns:
        Summary of selected features
    """
    result = {
        "operation": "attribute_selection",
        "layer": layer,
        "query": f"{field} {operator} {value}",
        "features_selected": 156,
        "total_features": 500
    }
    return json.dumps(result, indent=2)

@tool
def zonal_statistics(zone_layer: str, value_raster: str, statistics: list) -> str:
    """
    Calculate statistics for raster values within zone polygons.

    Args:
        zone_layer: Zone polygon layer name
        value_raster: Input raster dataset path
        statistics: List of statistics (mean, max, min, sum, std, count)

    Returns:
        Statistics table as JSON
    """
    result = {
        "operation": "zonal_statistics",
        "zone_layer": zone_layer,
        "value_raster": value_raster,
        "statistics": {
            stat: round(10 + hash(f"{zone_layer}{stat}") % 90, 2)
            for stat in statistics
        }
    }
    return json.dumps(result, indent=2)

@tool
def generate_map(layer: str, attribute: str, method: str = "natural_breaks", classes: int = 5) -> str:
    """
    Generate a thematic map from a layer.

    Args:
        layer: Layer to visualize
        attribute: Attribute field to map
        method: Classification method
        classes: Number of classes

    Returns:
        Map generation summary
    """
    result = {
        "operation": "thematic_map",
        "layer": layer,
        "attribute": attribute,
        "classification": method,
        "classes": classes,
        "map_url": f"/maps/{layer}_{attribute}_{method}.html",
        "legend": f"Generated {classes}-class {method} legend for {attribute}"
    }
    return json.dumps(result, indent=2)

# Tool registry
GIS_TOOLS = [buffer_analysis, spatial_intersection, extract_by_attribute,
             zonal_statistics, generate_map]

# ============================================================================
# LLM INITIALIZATION
# ============================================================================

# Primary reasoning model (capable)
llm = ChatOpenAI(model="gpt-4o", temperature=0)
llm_with_tools = llm.bind_tools(GIS_TOOLS)

# ============================================================================
# GRAPH NODES
# ============================================================================

def reasoning_node(state: GeoAgentState):
    """Central intelligence node - analyzes state and determines next action."""
    response = llm_with_tools.invoke(state["messages"])
    return {
        "messages": [response],
        "execution_log": state.get("execution_log", []) + [{
            "node": "reasoning",
            "tool_calls": response.tool_calls if hasattr(response, 'tool_calls') else []
        }]
    }

def planning_node(state: GeoAgentState):
    """Breaks down complex geospatial tasks into executable steps."""
    planner_prompt = """You are a geospatial task planner. Given a user request,
    break it down into specific GIS operations.

    Available operations:
    - buffer_analysis: Create buffer zones
    - spatial_intersection: Find overlapping areas
    - extract_by_attribute: Filter by attributes
    - zonal_statistics: Calculate raster stats by zone
    - generate_map: Create thematic visualizations

    Provide your plan as a numbered list of tool calls with specific parameters."""

    messages = state["messages"] + [SystemMessage(content=planner_prompt)]
    response = llm.invoke(messages)
    return {"messages": [response]}

def human_review_node(state: GeoAgentState):
    """Human-in-the-loop checkpoint for critical operations."""
    return {"requires_human": True, "messages": state["messages"]}

# ============================================================================
# ROUTING LOGIC
# ============================================================================

def router(state: GeoAgentState) -> str:
    """Inspects last message to determine next operational node."""
    last_message = state["messages"][-1]

    # Route to tool execution if tool calls present
    if hasattr(last_message, 'tool_calls') and last_message.tool_calls:
        return "execute_tools"

    # Check for completion signal
    content = last_message.content.lower() if hasattr(last_message, 'content') else ""
    if "final answer" in content or "task complete" in content:
        return "end"

    # Check if human review needed
    if state.get("requires_human", False):
        return "human_review"

    return "end"

def should_human_review(state: GeoAgentState) -> str:
    """Determine if destructive or expensive operations need approval."""
    last_message = state["messages"][-1]
    if hasattr(last_message, 'tool_calls'):
        for tc in last_message.tool_calls:
            if tc.get("name") in ["buffer_analysis", "spatial_intersection"]:
                # Auto-approve standard operations
                return "execute_tools"
    return "execute_tools"

# ============================================================================
# GRAPH CONSTRUCTION
# ============================================================================

workflow = StateGraph(GeoAgentState)

# Add nodes
workflow.add_node("reason", reasoning_node)
workflow.add_node("plan", planning_node)
workflow.add_node("execute_tools", ToolNode(GIS_TOOLS))
workflow.add_node("human_review", human_review_node)

# Define edges
workflow.add_edge(START, "reason")

# Conditional routing from reasoning
workflow.add_conditional_edges(
    "reason",
    router,
    {
        "execute_tools": "execute_tools",
        "human_review": "human_review",
        "end": END
    }
)

# Return paths
workflow.add_edge("execute_tools", "reason")
workflow.add_edge("human_review", "reason")
workflow.add_edge("plan", "reason")

# Compile
geo_agent = workflow.compile()

# ============================================================================
# USAGE EXAMPLE
# ============================================================================

if __name__ == "__main__":
    # Example query
    query = """
    I need to identify flood risk areas for schools near the river.
    1. Find all schools within 500 meters of the river
    2. Create 500m buffers around the river
    3. Intersect buffers with school locations
    4. Generate a risk map
    """

    initial_state = {
        "messages": [HumanMessage(content=query)],
        "active_skills": [],
        "spatial_context": {},
        "execution_log": [],
        "requires_human": False
    }

    result = geo_agent.invoke(initial_state)
    print("Agent Response:")
    print(result["messages"][-1].content)

10.2 CrewAI Multi-Agent Geospatial Team

"""
GeoAI Crew - Multi-Agent Geospatial Analysis Team
Uses CrewAI for collaborative spatial analysis
"""

from crewai import Agent, Task, Crew, Process
from crewai.tools import tool
import os

# ============================================================================
# TOOLS
# ============================================================================

@tool
def search_stac_catalog(query: str, bbox: list, date_range: str) -> str:
    """Search STAC catalogs for satellite imagery."""
    return f"Found 12 Sentinel-2 scenes for {query} in bbox {bbox} from {date_range}"

@tool
def run_geoprocessing(tool_name: str, inputs: dict) -> str:
    """Execute a geoprocessing tool."""
    return f"Executed {tool_name} with inputs: {inputs}. Output: result.shp"

@tool
def classify_land_cover(image_path: str, model: str) -> str:
    """Run land cover classification on imagery."""
    return f"Classified {image_path} using {model}. 8 classes identified."

@tool
def generate_report(analysis_results: str, template: str) -> str:
    """Generate analysis report from results."""
    return f"Report generated using {template}. Contains: {analysis_results}"

# ============================================================================
# AGENTS
# ============================================================================

data_specialist = Agent(
    role="Geospatial Data Specialist",
    goal="Acquire and prepare the highest quality spatial data for analysis",
    backstory="""You are an expert geospatial data engineer with 10+ years of experience
    in remote sensing, satellite imagery, and spatial data infrastructure. You know every
    STAC catalog, OGC service, and geospatial API. You excel at finding, downloading, and
    preprocessing spatial data for analysis workflows.""",
    tools=[search_stac_catalog],
    verbose=True,
    allow_delegation=False
)

spatial_analyst = Agent(
    role="Senior Spatial Analyst",
    goal="Perform rigorous geospatial analysis to extract actionable insights",
    backstory="""You are a senior GIS analyst specializing in environmental modeling,
    spatial statistics, and geoprocessing. You have deep expertise in raster analysis,
    vector operations, and spatial modeling. You always validate your results and document
    your methodology thoroughly.""",
    tools=[run_geoprocessing, classify_land_cover],
    verbose=True,
    allow_delegation=False
)

report_writer = Agent(
    role="Geospatial Report Writer",
    goal="Create clear, comprehensive reports that communicate findings effectively",
    backstory="""You are a technical writer specializing in geospatial analysis documentation.
    You transform complex spatial analysis results into clear, actionable reports with
    beautiful maps and visualizations. Your reports are used by decision-makers at all levels.""",
    tools=[generate_report],
    verbose=True,
    allow_delegation=False
)

# ============================================================================
# TASKS
# ============================================================================

task_acquire_data = Task(
    description="""
    Search for and acquire satellite imagery for the study area (bounding box:
    [-95.5, 29.5, -95.0, 30.0]) covering January-June 2024.
    Find Sentinel-2 L2A products with \<10% cloud cover.
    Also search for elevation data (DEM) and land cover reference data.
    Return a complete inventory of available datasets with their IDs and metadata.
    """,
    agent=data_specialist,
    expected_output="A structured list of all acquired datasets with IDs, dates, and quality metrics"
)

task_analyze = Task(
    description="""
    Using the acquired satellite imagery, perform the following analysis:
    1. Preprocess imagery (atmospheric correction, cloud masking)
    2. Calculate NDVI vegetation index
    3. Perform land cover classification using supervised classification
    4. Identify areas of vegetation change between time periods
    5. Generate statistics: total area by land cover class, change detection summary

    Document all parameters and methods used.
    """,
    agent=spatial_analyst,
    context=[task_acquire_data],
    expected_output="Analysis results with methodology documentation and key statistics"
)

task_report = Task(
    description="""
    Create a comprehensive geospatial analysis report including:
    1. Executive summary of findings
    2. Methodology section with all parameters
    3. Results with tabulated statistics
    4. Visual description of map outputs
    5. Recommendations based on analysis

    Format as a professional technical report suitable for stakeholder review.
    """,
    agent=report_writer,
    context=[task_analyze],
    expected_output="Complete technical report in markdown format with all sections"
)

# ============================================================================
# CREW EXECUTION
# ============================================================================

crew = Crew(
    agents=[data_specialist, spatial_analyst, report_writer],
    tasks=[task_acquire_data, task_analyze, task_report],
    process=Process.sequential,
    verbose=True
)

if __name__ == "__main__":
    result = crew.kickoff()
    print("\n" + "="*60)
    print("FINAL REPORT")
    print("="*60)
    print(result)

10.3 GeoAgent with Live Map Integration

"""
GeoAgent Live Map Example
Interactive geospatial AI agent bound to a live map widget
"""

import leafmap
from geoagent import for_leafmap, GeoAgentConfig

# Create map
m = leafmap.Map(center=[35.9606, -83.9207], zoom=10)

# Configure agent with specific provider
config = GeoAgentConfig(
    provider="openai",
    model="gpt-4o",
    temperature=0.1
)

# Bind agent to map
agent = for_leafmap(m, config=config)

# Interactive geospatial queries
queries = [
    "Add a marker for Knoxville, Tennessee and zoom to it",
    "Change the basemap to satellite imagery",
    "Load the OpenStreetMap buildings layer for this area",
    "Set the opacity of the buildings layer to 0.6",
    "Add a buffer of 1km around the Knoxville marker",
    "List all layers currently on the map",
    "Save the current map view as map_export.png"
]

# Execute queries
for query in queries:
    print(f"\n🗣️  User: {query}")
    response = agent.chat(query)
    print(f"🤖 Agent: {response.answer_text}")

# Display interactive map
m

10.4 MCP Server for GIS Tools

"""
GIS MCP Server - Expose geoprocessing tools via Model Context Protocol
"""

from mcp.server import Server
from mcp.types import Tool, TextContent
import json

# Initialize MCP server
server = Server("gis-mcp-server")

# Define GIS tools exposed via MCP
@server.list_tools()
async def list_tools():
    return [
        Tool(
            name="buffer_geometry",
            description="Create buffer zones around input geometries",
            inputSchema={
                "type": "object",
                "properties": {
                    "layer": {"type": "string"},
                    "distance": {"type": "number"},
                    "unit": {"type": "string", "enum": ["m", "km", "ft", "mi"]}
                },
                "required": ["layer", "distance"]
            }
        ),
        Tool(
            name="spatial_query",
            description="Query features by spatial relationship",
            inputSchema={
                "type": "object",
                "properties": {
                    "target_layer": {"type": "string"},
                    "query_layer": {"type": "string"},
                    "relationship": {"type": "string", "enum": ["intersects", "within", "contains", "near"]}
                },
                "required": ["target_layer", "query_layer", "relationship"]
            }
        ),
        Tool(
            name="raster_analysis",
            description="Perform raster analysis operations",
            inputSchema={
                "type": "object",
                "properties": {
                    "operation": {"type": "string", "enum": ["clip", "reclassify", "calculate_slope", "calculate_aspect"]},
                    "input_raster": {"type": "string"},
                    "parameters": {"type": "object"}
                },
                "required": ["operation", "input_raster"]
            }
        )
    ]

@server.call_tool()
async def call_tool(name: str, arguments: dict):
    """Execute GIS tool calls from MCP clients."""

    if name == "buffer_geometry":
        result = execute_buffer(
            layer=arguments["layer"],
            distance=arguments["distance"],
            unit=arguments.get("unit", "m")
        )
        return [TextContent(type="text", text=json.dumps(result))]

    elif name == "spatial_query":
        result = execute_spatial_query(
            target=arguments["target_layer"],
            query=arguments["query_layer"],
            relationship=arguments["relationship"]
        )
        return [TextContent(type="text", text=json.dumps(result))]

    elif name == "raster_analysis":
        result = execute_raster_op(
            operation=arguments["operation"],
            raster=arguments["input_raster"],
            params=arguments.get("parameters", {})
        )
        return [TextContent(type="text", text=json.dumps(result))]

    else:
        raise ValueError(f"Unknown tool: {name}")

def execute_buffer(layer: str, distance: float, unit: str):
    """Execute buffer geoprocessing."""
    return {
        "status": "success",
        "operation": "buffer",
        "input": {"layer": layer, "distance": distance, "unit": unit},
        "output_layer": f"{layer}_buffer_{distance}{unit}",
        "features_created": 47,
        "area_km2": 12.5
    }

def execute_spatial_query(target: str, query: str, relationship: str):
    """Execute spatial query."""
    return {
        "status": "success",
        "operation": "spatial_query",
        "relationship": relationship,
        "features_selected": 23,
        "total_features": 150
    }

def execute_raster_op(operation: str, raster: str, params: dict):
    """Execute raster analysis."""
    return {
        "status": "success",
        "operation": operation,
        "input_raster": raster,
        "output_raster": f"{raster}_{operation}.tif",
        "parameters": params
    }

if __name__ == "__main__":
    import asyncio
    from mcp.server.stdio import stdio_server

    async def main():
        async with stdio_server() as (read_stream, write_stream):
            await server.run(
                read_stream,
                write_stream,
                server.create_initialization_options()
            )

    asyncio.run(main())

11. Real-World Use Cases

11.1 Disaster Response & Emergency Management

Scenario: Post-hurricane damage assessment

┌─────────────────────────────────────────────────────────────────┐
│            AUTONOMOUS DISASTER RESPONSE AGENT                    │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  INPUT: "Assess flood damage in affected coastal region"         │
│                                                                  │
│  STEP 1: Data Acquisition                                        │
│    ├── Retrieve pre-event satellite imagery (Sentinel-2)         │
│    ├── Retrieve post-event satellite imagery (Maxar)             │
│    ├── Collect DEM for flood modeling                            │
│    └── Load critical infrastructure layer (hospitals, roads)     │
│                                                                  │
│  STEP 2: Change Detection                                        │
│    ├── Run deep learning change detection model                  │
│    ├── Identify destroyed buildings                              │
│    └── Detect road blockages                                     │
│                                                                  │
│  STEP 3: Flood Modeling                                          │
│    ├── Run hydrological model with rainfall data                 │
│    ├── Generate flood extent polygons                            │
│    └── Calculate flood depth raster                              │
│                                                                  │
│  STEP 4: Impact Analysis                                         │
│    ├── Intersect flood zones with population data                │
│    ├── Identify affected critical facilities                     │
│    └── Calculate population at risk                              │
│                                                                  │
│  STEP 5: Report Generation                                       │
│    ├── Generate damage assessment map                            │
│    ├── Prioritize rescue routes                                  │
│    └── Create situation report with statistics                   │
│                                                                  │
│  OUTPUT: Damage map, prioritized response plan, statistics       │
└─────────────────────────────────────────────────────────────────┘

11.2 Urban Planning & Smart Cities

Scenario: Automated zoning compliance checking

Agent	Task	Tools Used
Data Agent	Retrieve building permits, zoning layers, height restrictions	WFS queries, attribute extraction
Analysis Agent	Check compliance: setbacks, height limits, density	Overlay, buffer, spatial join
Reporting Agent	Generate compliance report with maps	Thematic mapping, layout generation

11.3 Environmental Monitoring

Scenario: Deforestation early warning system

# Conceptual workflow
def deforestation_monitor():
    """
    Autonomous monitoring agent that:
    1. Ingests monthly Sentinel-2 imagery via STAC
    2. Runs random forest classifier for forest/non-forest
    3. Compares with baseline land cover
    4. Detects anomalous clearing events
    5. Alerts authorities with precise locations
    6. Generates enforcement priority map
    """
    pass

11.4 Infrastructure Inspection

Application: Automated road condition assessment

Input: Aerial/drone imagery
Agent Pipeline: Image ingestion → crack detection AI → severity classification → priority map → work order generation
Impact: 90% reduction in manual inspection time

11.5 Insurance Risk Assessment

Application: Property risk scoring

Data: Elevation, flood zones, historical claims, building footprints, vegetation proximity
Agent: Autonomous multi-factor risk model with spatial interpolation
Output: Risk surface with per-property scores

12. GIS Platforms with AI Agent Integration

12.1 ArcGIS (Esri)

Component	Description	Status
AI Framework	Modular foundation for AI capabilities	Production
AI Assistants	Natural language UX across products	Multiple in Beta
AI Agents	Workflow orchestration components	Preview
GeoAI Tools	Pre-trained ML models for spatial analysis	Production
Notebook Assistant	Python code generation for ArcPy	Beta
Arcade Assistant	Expression writing helper	Beta

Key Features:

75+ pre-trained models for common GIS workflows
AI framework supports both hosted and bring-your-own-model
Cross-product assistants (Map Viewer, Pro, Online)
Trusted AI principles: Security, Privacy, Transparency, Fairness, Reliability, Accountability

12.2 CARTO

Feature	Description
AI Agents	Public preview, natural language map interaction
Context Layer	Automatic map configuration, tool definitions
Agent Configuration Assistant	Conversational agent setup
MCP Tools	CARTO MCP Server for geospatial operations

12.3 SuperMap AgentX Server

Feature	Specification
LLM Support	Qwen series, DeepSeek series
MCP Tools	200+ operators (iServer), 60+ operators (iPortal)
Agent Types	Knowledge, Workflow, Autonomous
Architecture	x86, ARM (Kunpeng), multi-OS
Database	Yugong Spatial Database (co-developed with Huawei)

12.4 Open Source Ecosystem

Project	Description	Link
GeoAgent	Shared agent layer for geospatial Python	github.com/opengeos/GeoAgent
GeoAI	Python package for AI + geospatial analysis	opengeoai.org
Leafmap	Interactive mapping with AI integration	leafmap.org
TorchGeo	Deep learning for geospatial data	torchgeo.readthedocs.io
GeoAI-ML	ML toolkit for ArcGIS / open source	esri.github.io/geoai-ml

13. Building Your First GeoAI Agent

Step-by-Step Guide

Step 1: Define Your Use Case
├── What geospatial problem are you solving?
├── Who are the users?
├── What data sources are needed?
└── What is the desired output?

Step 2: Choose Your Architecture
├── Single agent or multi-agent?
├── Knowledge, Workflow, or Autonomous?
├── Which framework (LangChain, CrewAI, AutoGen, Custom)?
└── LLM provider (OpenAI, Anthropic, Local)?

Step 3: Design Your Tools
├── List all GIS operations needed
├── Define tool schemas (name, params, returns)
├── Implement tool functions
└── Register with agent

Step 4: Build Context Layer
├── Data catalog with field descriptions
├── Spatial reference system definitions
├── Domain knowledge (RAG or fine-tuning)
└── Example queries and expected outputs

Step 5: Implement Agent Logic
├── Define state management
├── Set up routing/decision logic
├── Add memory and context handling
└── Configure error handling and retries

Step 6: Add Safety & Guardrails
├── Confirmation for destructive operations
├── Token and cost limits
├── Human-in-the-loop checkpoints
└── Output validation

Step 7: Test & Iterate
├── Unit tests for individual tools
├── Integration tests for workflows
├── User acceptance testing
└── Performance optimization

Step 8: Deploy & Monitor
├── API endpoint or web app
├── Logging and observability
├── Usage analytics
└── Continuous improvement loop

14. Production Considerations

14.1 Cost Management

Strategy	Implementation	Savings
Model Tiering	Use GPT-4o for reasoning, GPT-4o-mini for execution	50-70%
Tool Limiting	Start with 3-5 tools, expand as needed	30-40%
Caching	Cache frequent queries and results	20-30%
Max Iterations	Set hard limits on agent loops	Prevents runaway costs
Async Processing	Queue expensive operations	Better resource use

14.2 Reliability Patterns

┌─────────────────────────────────────────────────────────────────┐
│                   PRODUCTION SAFEGUARDS                          │
├─────────────────────────────────────────────────────────────────┤
│                                                                  │
│  1. OBSERVABILITY                                                │
│     ├── Log every LLM call with prompt and response              │
│     ├── Track tool invocations and results                       │
│     ├── Monitor token usage and costs                            │
│     └── Measure latency per operation                            │
│                                                                  │
│  2. ERROR HANDLING                                               │
│     ├── Retry with exponential backoff                           │
│     ├── Circuit breaker for failing tools                        │
│     ├── Graceful degradation (partial results)                   │
│     └── Fallback to human escalation                             │
│                                                                  │
│  3. SAFETY GUARDRAILS                                            │
│     ├── Confirmation gates for destructive ops                   │
│     ├── Rate limiting on tool calls                              │
│     ├── Input sanitization and validation                        │
│     └── Output schema validation                                 │
│                                                                  │
│  4. HUMAN-IN-THE-LOOP                                            │
│     ├── Review checkpoints for critical analysis                 │
│     ├── Approval workflow for data publication                   │
│     ├── Override capability for expert users                     │
│     └── Feedback collection for improvement                      │
│                                                                  │
└─────────────────────────────────────────────────────────────────┘

14.3 Performance Optimization

Technique	When to Use
Fast Mode	Quick map controls, simple queries
Streaming	Long-running analysis for UX feedback
Parallel Tool Calls	Independent operations
Progressive Disclosure	Load skills only when needed
Vector Search	Large tool registries

14.4 Security Checklist

15. Future Outlook

2026-2030 Roadmap

2026 ──► Production workflow agents become mainstream
     ├── Multi-modal agents (text + map + image + 3D)
     ├── Standardized MCP tool ecosystem for GIS
     └── Real-time streaming spatial analysis

2027 ──► Autonomous agents reach 85%+ task success rate
     ├── Edge deployment for field devices
     ├── Cross-platform agent interoperability
     └── Self-improving agents from feedback

2028 ──► Agent marketplaces for geospatial skills
     ├── Domain-specific agents (cadastral, utilities, etc.)
     ├── Federated multi-organization analysis
     └── Digital twin integration

2029+ ──► Fully autonomous geospatial operations centers
      ├── Predictive maintenance for infrastructure
      ├── Self-updating spatial databases
      └── AI-driven urban planning recommendations

Emerging Trends

Trend	Impact
Agentic RAG (GeoAgentic-RAG)	Multi-agent retrieval with spatial reasoning
MCP Ecosystem Standardization	Universal GIS tool connectors
Local LLM Deployment	Edge AI for sensitive geospatial data
Multi-Modal Vision	Agents that interpret maps, charts, and satellite imagery
Federated Agents	Cross-organizational spatial analysis without data sharing

16. Resources & References

Official Documentation

Research Papers

Liang et al. (2026). GeoAgentic-RAG: A Multi-Agent framework for autonomous geospatial analysis. Science of Remote Sensing.
ACM SIGSPATIAL (2025). GeoAgent: An Agentic AI Framework for Spatial Query Understanding.
Song Guanfu (2025). Exploring Geospatial AI Agent Technology. SuperMap.

Framework Documentation

Learning Resources

Cognitive Class: AI-Powered Agent for Geospatial Insights
CARTO Academy: AI Agents Tutorial
Esri Training: GeoAI Fundamentals

Community

GeoAI Slack / Discord communities
r/gis and r/AI_Agents on Reddit
Stack Overflow: [geoai] and [langchain] tags

17. Glossary

Term	Definition
Agent	An AI system that autonomously plans and executes tasks using tools
CrewAI	Role-based multi-agent orchestration framework
GeoAI	Integration of geospatial data and AI techniques
GIS	Geographic Information System
LangChain	Modular framework for LLM applications
LangGraph	Graph-based stateful agent framework (LangChain extension)
LLM	Large Language Model
MCP	Model Context Protocol - standardized tool connection
RAG	Retrieval-Augmented Generation
ReAct	Reason + Act agent pattern
RS	Remote Sensing
STAC	SpatioTemporal Asset Catalog
Tool Calling	LLM invoking external functions
Vector Store	Database for semantic search embeddings
Workflow Agent	Agent executing predefined analysis pipelines

Contributing: This guide is a living document. Contributions, corrections, and additions are welcome via pull requests.

License: This document is shared under CC BY-SA 4.0.

Disclaimer: AI agent capabilities evolve rapidly. Verify current feature availability with respective platform vendors before production deployment.

Table of Contents

1. Executive Summary

Key Takeaways

2. What is GeoAI?

Definition

Evolution of AI in GIS

The Four Pillars of GeoAI

3. Geospatial AI Agents: Core Concepts

What is a Geospatial AI Agent?

Core Agent Systems

Agent vs. Assistant vs. Traditional Script

4. System Architecture & Design Patterns

High-Level GeoAI Platform Architecture

5. Three-Tier Geospatial Agent Architecture

6. Types of Geospatial AI Agents

6.1 Knowledge Agents (Level 1)

6.2 Workflow Agents (Level 2)

6.3 Autonomous Agents (Level 3)

Agent Type Comparison Matrix

7. AI Agent Frameworks for GeoAI

7.1 Framework Comparison

7.2 LangChain / LangGraph for GeoAI

7.3 CrewAI for GeoAI

7.4 AutoGen for GeoAI

7.5 Strands Agents / GeoAgent (Geospatial-Native)

8. Tool Systems: MCP, RAG & Function Calling

8.1 Model Context Protocol (MCP)

8.2 RAG for Geospatial Knowledge

8.3 GIS Tool Function Calling Schema

9. Agent Design Patterns

9.1 ReAct (Reason + Act) Pattern

9.2 Routing Patterns

9.3 Multi-Agent Patterns

9.4 Reflective Agent Pattern

10. Code Implementation Examples

10.1 Complete GeoAI Agent with LangGraph

10.2 CrewAI Multi-Agent Geospatial Team

10.3 GeoAgent with Live Map Integration

10.4 MCP Server for GIS Tools

11. Real-World Use Cases

11.1 Disaster Response & Emergency Management

11.2 Urban Planning & Smart Cities

11.3 Environmental Monitoring

11.4 Infrastructure Inspection

11.5 Insurance Risk Assessment

12. GIS Platforms with AI Agent Integration

12.1 ArcGIS (Esri)

12.2 CARTO

12.3 SuperMap AgentX Server

12.4 Open Source Ecosystem

13. Building Your First GeoAI Agent

Step-by-Step Guide

14. Production Considerations

14.1 Cost Management

14.2 Reliability Patterns

14.3 Performance Optimization

14.4 Security Checklist

15. Future Outlook

2026-2030 Roadmap

Emerging Trends

16. Resources & References

Official Documentation

Research Papers

Framework Documentation

Learning Resources

Community

17. Glossary

Commentaires

Table of Contents

1. Executive Summary

Key Takeaways

2. What is GeoAI?

Definition

Evolution of AI in GIS

The Four Pillars of GeoAI

3. Geospatial AI Agents: Core Concepts

What is a Geospatial AI Agent?

Core Agent Systems

Agent vs. Assistant vs. Traditional Script

4. System Architecture & Design Patterns
